Land Rover Defender: Front End Body Panels
SPECIFICATIONS

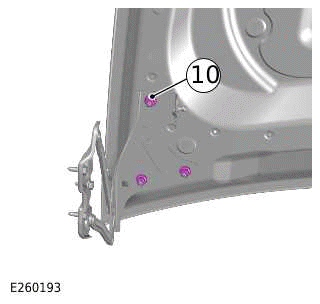

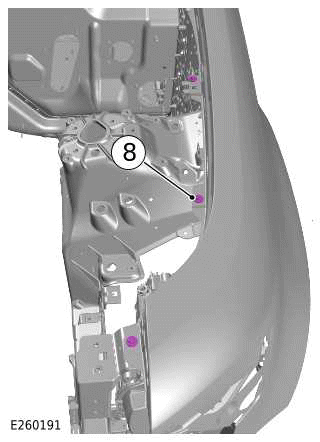

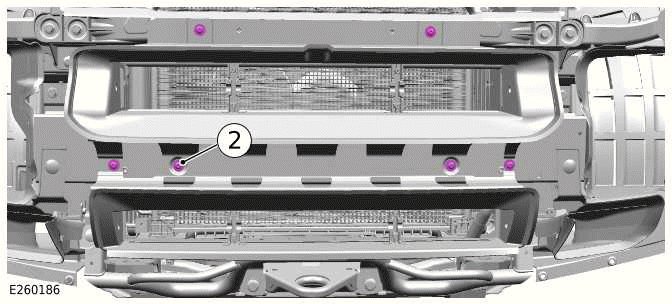

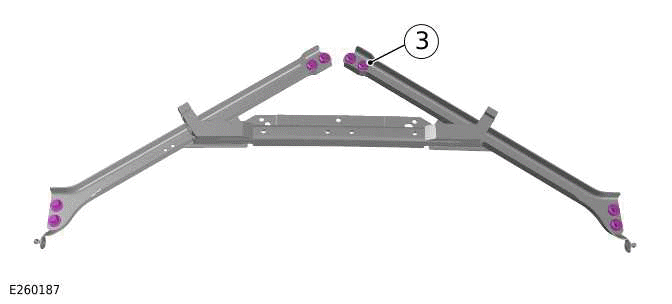

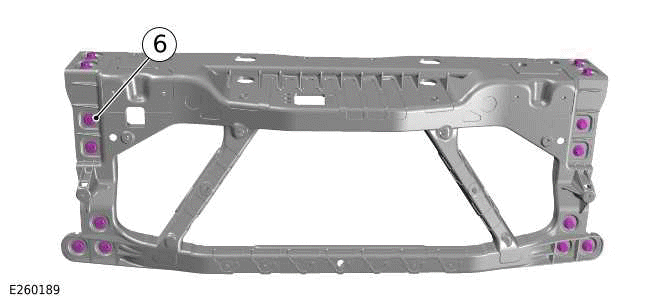

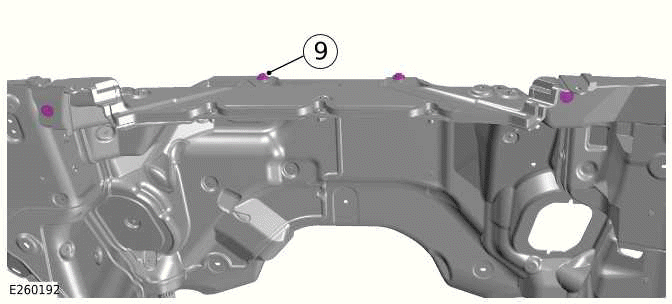

COMPONENT TORQUE LOCATION

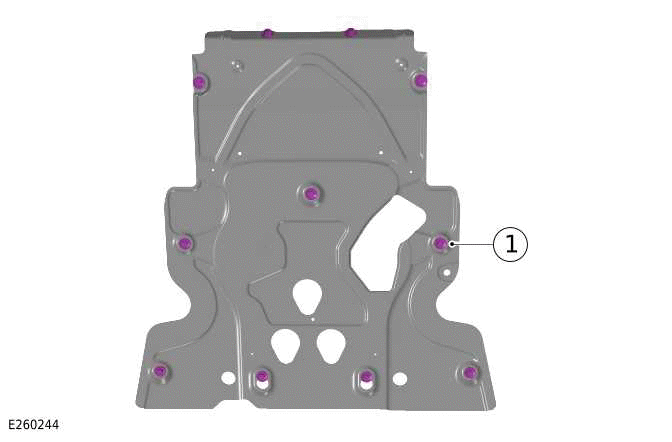

.png)
.png)
.png)

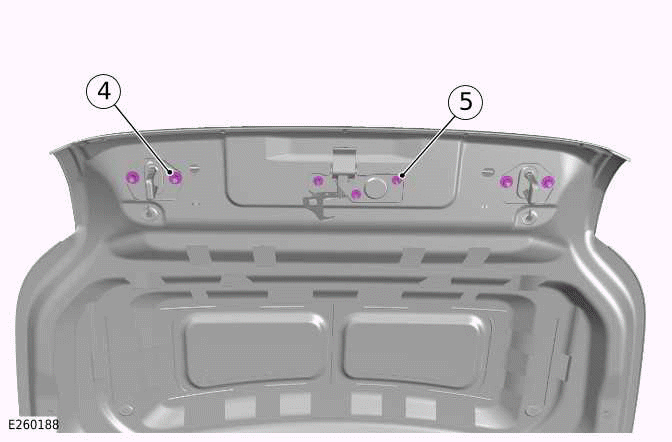

.png)
.png)
.png)

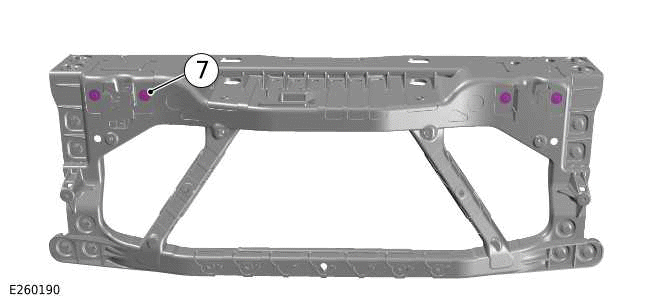

.png)
.png)
.png)
.png)

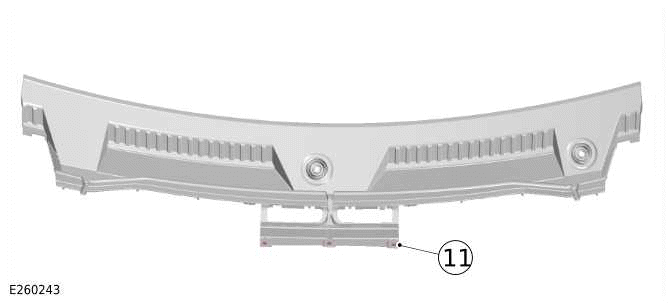

.png)

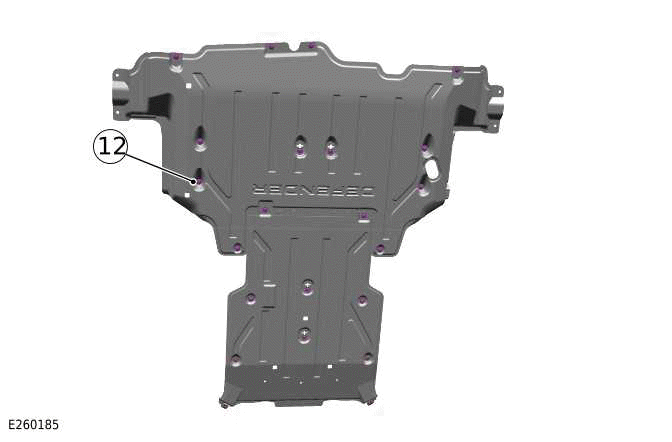

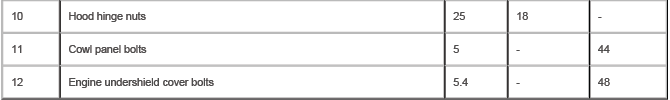

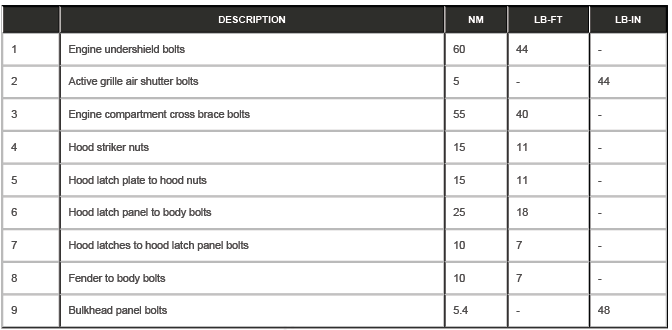

Torque Specifications
.png)
.png)
