Land Rover Defender: Secondary Bulkhead Center Panel
REMOVAL AND INSTALLATION
GENERAL EQUIPMENT
.png)
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
1. Remove the cowl panel.

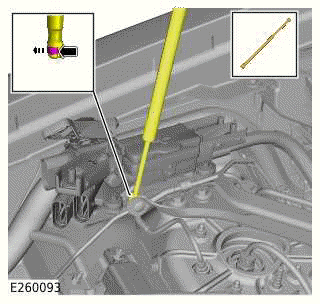

2.
NOTE:
Repeat this step for the other side.
.png)
3.
.png)

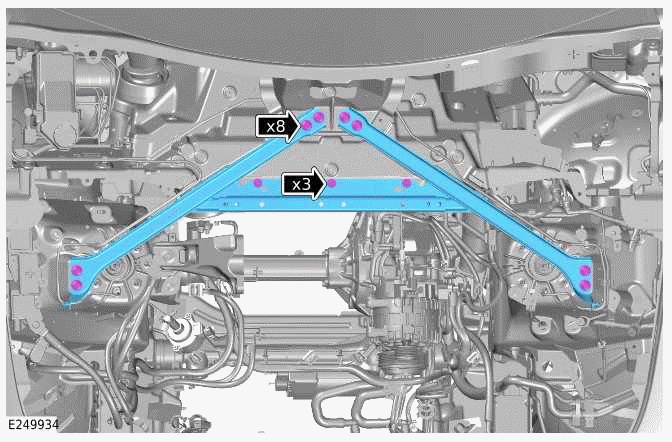

- Remove the 11 bolts.
- Remove the engine compartment brace.
4.
NOTE:
If equipped.
.png)

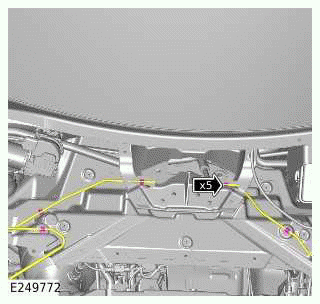

- Release the 5 clips from the air suspension pipes.
- Reposition the air suspension pipes away from the secondary bulkhead
center panel.
5.
.png)

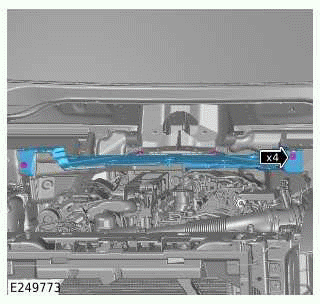

- Remove the 4 bolts.
- Remove the secondary bulkhead center panel.
INSTALLATION
1.
- Install the secondary bulkhead center panel.
- Install and tighten the 4 bolts.
Torque: 5.4Nm
2.
NOTE:
If equipped.
- Reposition the air suspension pipes into the correct location.
- Install the 5 clips to the air suspension pipes.
3.
- Install the engine compartment brace.
- Install the 8 M10 bolts.
Torque: 55Nm
- Install the 3 M6 bolts.
Torque: 5.4Nm
4.
NOTE:
Repeat this step for the other side.
- With the aid of another technician, install the 2 struts.
- Remove the telescopic support.
5. Install the cowl panel.
