Land Rover Defender: Front Wheel Arch Liner
REMOVAL AND INSTALLATION
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
- This procedure Contains illustrations for the left side components,
right side components are similar.
1. Raise and support the vehicle on a suitable 2 post lift.
2. Remove the wheel and tire.
3.
.png)

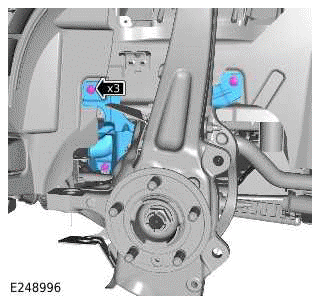

- Release the 3 clips.
- Remove the front wheel arch inner moulding.
4.
.png)

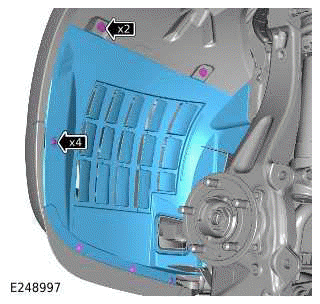

- Release the 2 clips.
- Remove the 4 screws.
- Remove the wheel arch liner front section.
5.
.png)

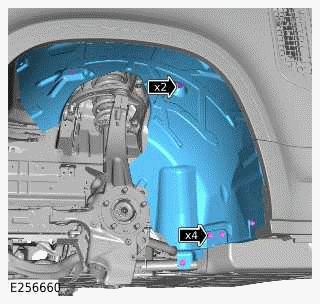

- Release the 2 clips.
- Remove the 4 screws.
- Remove the wheel arch liner rear section.
INSTALLATION
1.
- Install the wheel arch liner rear section.
- Install the 4 screws.
Torque: 5Nm
- Install the 2 clips.
2.
- Install the wheel arch liner front section.
- Install the 4 screws.
Torque: 5Nm
- Install the 2 clips.
3.
- Install the front wheel arch inner moulding.
- Install the 3 clips.
4. Install the wheel and tire.
