Land Rover Defender: Left Undershield
Land Rover Defender 2020-2024 Service Manual / Body and Paint / Front End Body Panels / Left Undershield
REMOVAL AND INSTALLATION
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
1. Raise and support the vehicle on a suitable 2 post lift.
2.
.png)

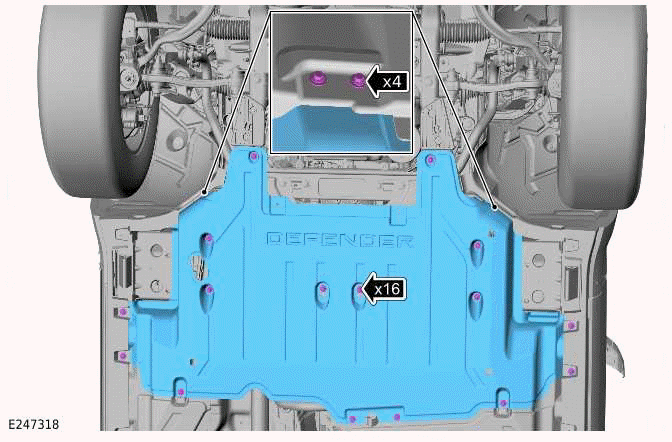

- Remove the 20 bolts.
- Remove the transmission undershield.
3. Remove the rocker panel.
4.
.png)

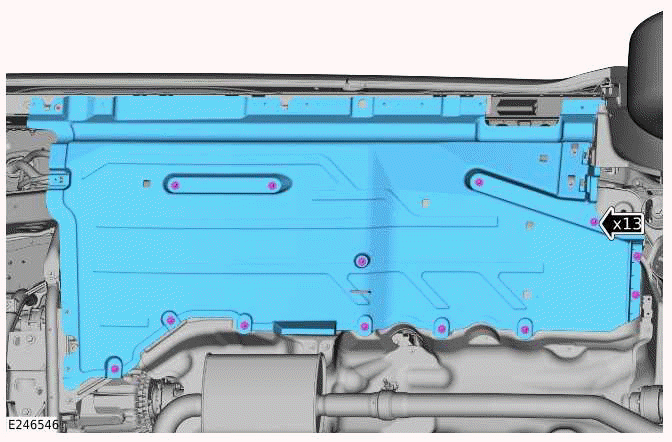

- Remove the 13 bolts.
- Remove the left undershield.
INSTALLATION
1.
- Install the left undershield.
- Install and tighten the 13 bolts.
Torque: 5.4Nm
2. Install the rocker panel.
3.
- Install the transmission undershield.
- Install and tighten the 20 bolts.
Torque: 10Nm
