Land Rover Defender: Engine Undershield
Land Rover Defender 2020-2026 Service Manual / Body and Paint / Front End Body Panels / Engine Undershield
REMOVAL AND INSTALLATION
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
1. Raise and support the vehicle on a suitable 2 post lift.
2.
CAUTION: Take extra care not to damage the component.

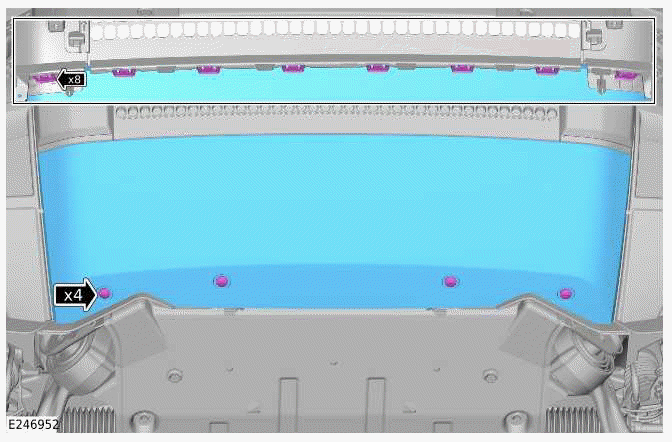

.png)
- Remove the 4 fasteners.
- Release the 8 clips.
- Remove the tow eye cover.
3.

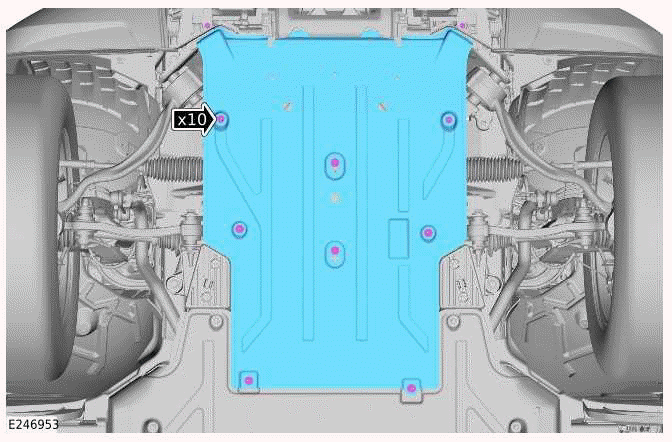

.png)
- Remove the 10 bolts.
- Remove the engine undershield cover.
4.

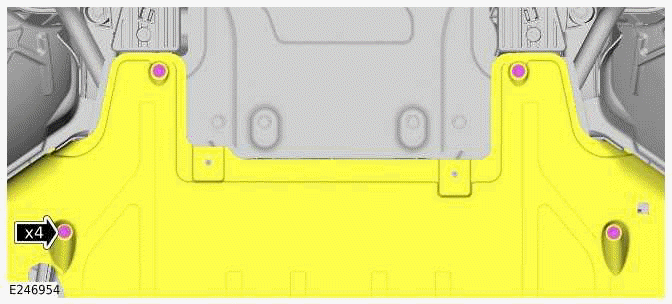

.png)
Remove the 4 bolts.
5.

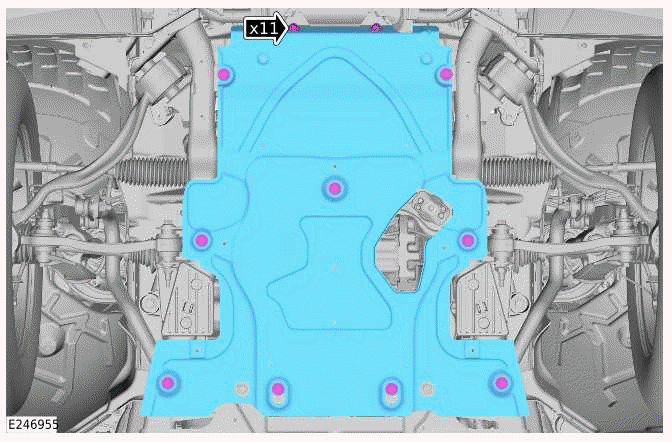

.png)
- Remove the 11 bolts.
- Remove the engine undershield.
INSTALLATION
1.
- Install the engine undershield.
- Install and tighten the 11 bolts.
Torque: 60Nm
2. Install and tighten the 4 bolts.
Torque: 5.4Nm
3.
- Install the engine undershield cover.
- Install and tighten the 10 bolts.
Torque: 5.4Nm
4.
- Install the tow eye cover.
- Install the 8 clips.
- Install the 4 fasteners.
