Land Rover Defender: Seatbelt System
Land Rover Defender 2020-2025 Service Manual / Body and Paint / Seatbelt System
SPECIFICATIONS

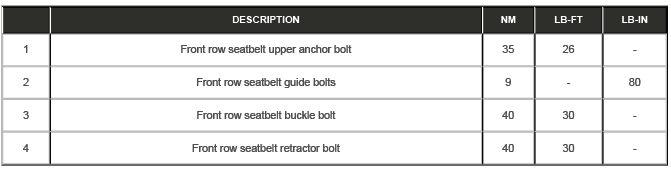

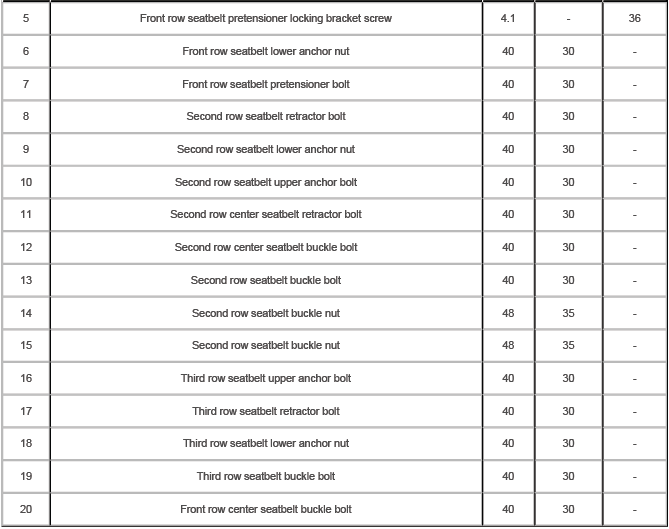

Torque Specifications

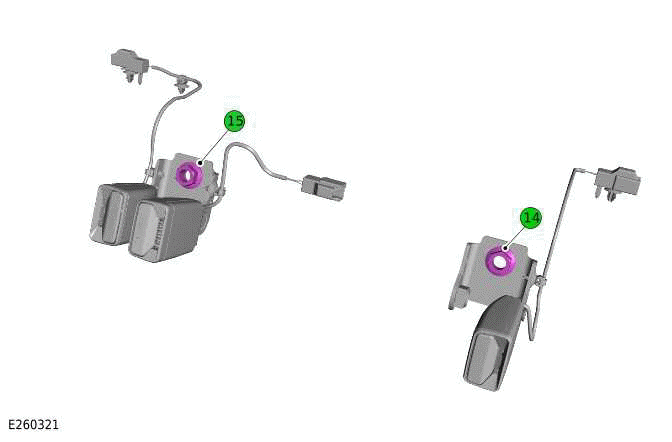

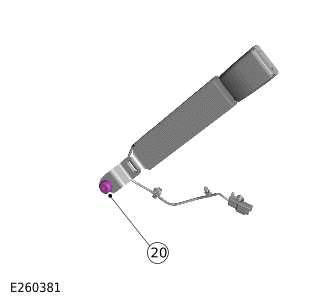

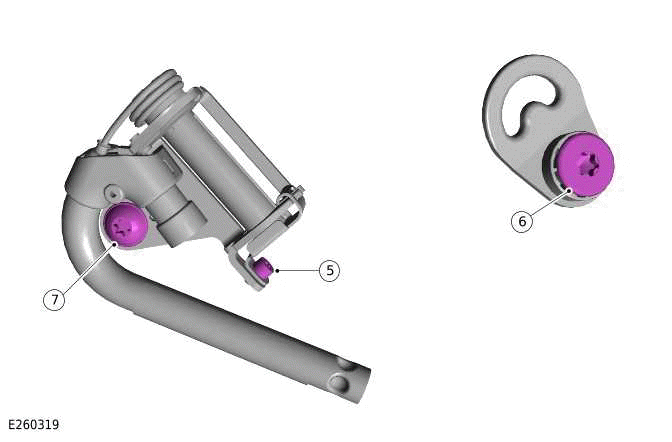

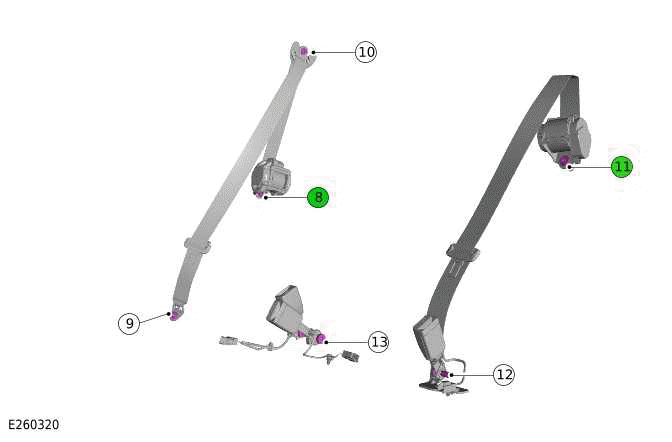

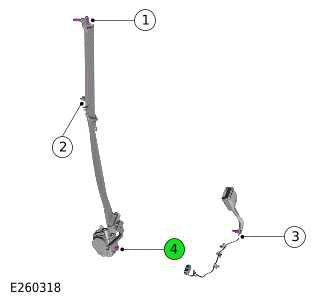

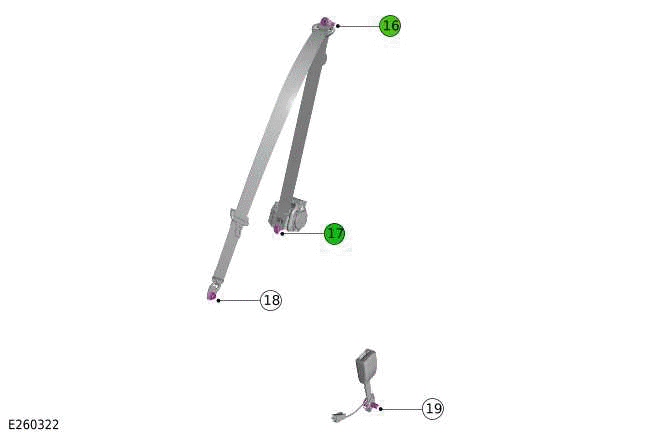

COMPONENT TORQUE LOCATION
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
- Seatbelt System - Component Location, Overview
- Seatbelt System - Description
- Seatbelt System - Operation
- Seatbelt System - Control Diagram
- Seatbelt System - Diagnosis and Testing
- Front Row Seatbelt Buckle - Vehicles With: Power Seats
- Front Row Seatbelt Buckle - Vehicles Without: Power Seats
- Front Row Seatbelt Retractor - 110
- Front Row Seatbelt Retractor - 90
- Second Row Center Seatbelt Retractor
- Second Row Center Seatbelt Buckle - [+] 7 Seat Configuration, 110
- Second Row Seatbelt Buckle
- Second Row Seatbelt Retractor - 110
- Second Row Seatbelt Retractor - 90
- Third Row Seatbelt Retractor
- Third Row Seatbelt Buckle
- Front Row Seatbelt Pretensioner
- Front Row Center Seatbelt Buckle
- Front Row Center Seatbelt Retractor
- Second Row Center Seatbelt Buckle - 90
READ NEXT:
Seatbelt System - Component Location, Overview
COMPONENT LOCATION
COMPONENT LOCATION - 1 OF 7 - ALL MARKET EXCEPT NORTH AMERICAN
SPECIFICATION VEHICLES
NOTES:
Vehicle with 5 doors is shown, vehicle with 3 doors is similar.
Right Hand Drive (RH
Seatbelt System - Description
FRONT ROW SEATBELTS
The outer of the front seatbelt retractors are attached to the vehicle body
on the lower B-pillar. The webbing runs from
the retractor, through the seatbelt D-loop which is instal
Seatbelt System - Operation
SEATBELT REMINDER
NOTE:
The warning indicator is displayed each time there is a status change. For
example, a seatbelt is unfastened
or a door is opened and then closed.
The seatbelt warning indicato
