Land Rover Defender: Second Row Seatbelt Retractor - 90
REMOVAL AND INSTALLATION
PART(S)
REMOVAL
WARNING:
NOTE:
- Note the orientation of the components.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations for right side components, left
side components are similar.
1. Before handling any components within the SRS, make sure that the safety
guidelines are followed.
2. Disconnect the startup battery ground cable.
3. Remove the rear quarter trim panel.
4. Remove the C-pillar trim panel.
5. Remove the rear junction box.
6.

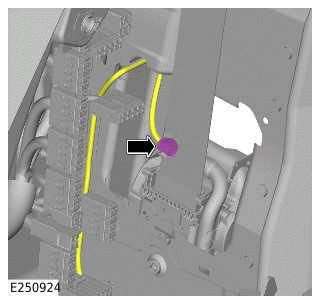

Disconnect the electrical connector.
7.

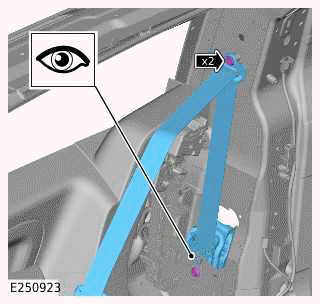

NOTE:
Note the position of the component prior to removal.
- Remove the seatbelt upper anchor bolt.
- Remove the seatbelt retractor bolt.
- Remove the second row seatbelt retractor and belt assembly.
INSTALLATION
1.
CAUTION:
Make sure that the component is correctly located.
2.
- Install and tighten the seatbelt upper anchor bolt.
Torque: 40Nm
3. Install the rear junction box.
4. Install the C-pillar trim panel.
5. Install the rear quarter trim panel.
6. Connect the startup battery ground cable.
