Land Rover Defender: Second Row Seatbelt Buckle
REMOVAL AND INSTALLATION
PART(S)
.png)
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
The following step(s) applies to:
All vehicles
1. Disconnect the battery ground cable.
The following step(s) applies to:
Vehicles without third row seats
2.
.png)

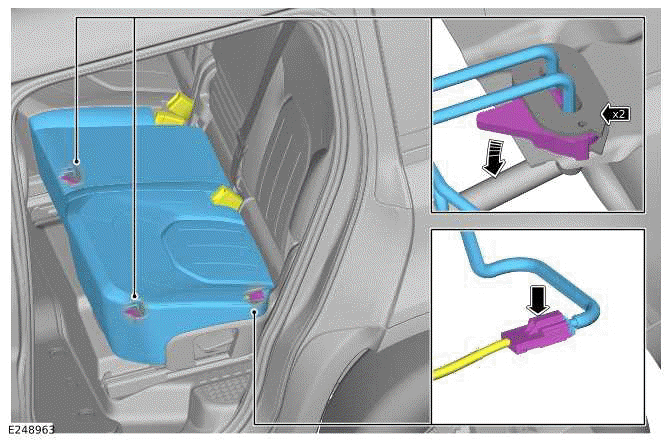

- Release the 4 fasteners.
- Release the second row seat cushion.
- Disconnect the 2 electrical connectors.
- Release the 2 wiring harness clips.
- Remove the second row seat cushion.
3.
.png)

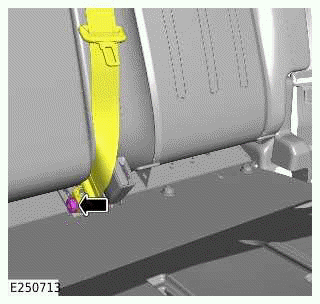

- Remove the seatbelt anchor bolt.
- Release the seatbelt.
4.
.png)

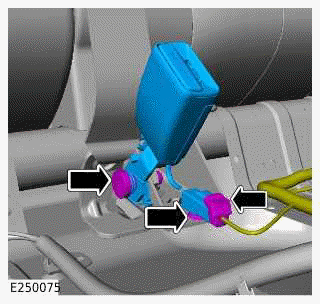

- Disconnect the electrical connector.
- Remove and discard the nut.
- Remove the rear seatbelt buckle.
The following step(s) applies to:
Vehicles with third row seats
5.
.png)

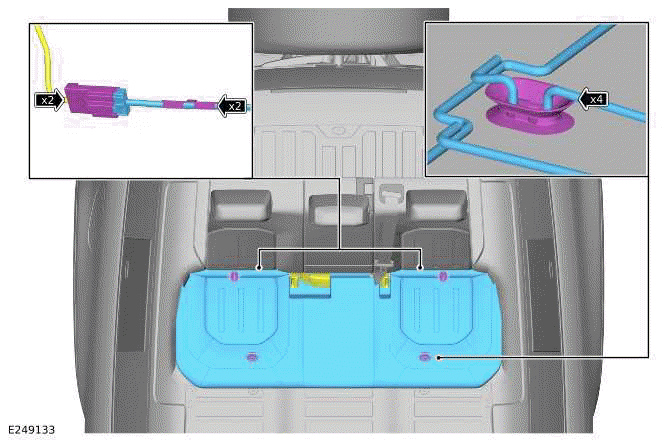

- Release the 2 fasteners.
- Release the second row seat cushion.
- Disconnect the seat cushion heating element electrical connector.
- Remove the second row seat cushion.

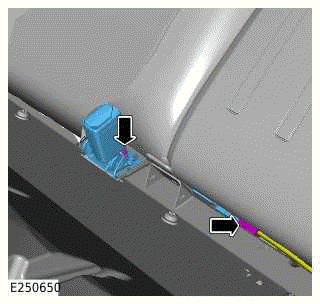

6.
.png)
- Disconnect the electrical connector.
- Release the clip.
- Release the bolt.
- Remove the rear seatbelt buckle assembly.
INSTALLATION
The following step(s) applies to:
Vehicles with third row seats
1.
- Install the rear seatbelt buckle assembly.
- Tighten the bolt.
Torque: 40Nm
- Install the clip.
- Connect the electrical connector.
2.
- Connect the seat cushion heating element electrical connector.
- Install the second row seat cushion.
The following step(s) applies to:
Vehicles without third row seats
3.
4.
- Install the seatbelt.
- Tighten the seatbelt anchor bolt.
Torque: 40Nm
5.
- Connect the 2 second row seat cushion heating element electrical
connectors.
- Install the 2 wiring harness clips.
- Install the second row seat cushion.
The following step(s) applies to:
All vehicles
6. Connect the battery ground cable.
