Land Rover Defender: Second Row Center Seatbelt Buckle - 90
REMOVAL AND INSTALLATION
PART(S)
.png)
REMOVAL
WARNINGS:
- To avoid accidental deployment, the Restraints Control Module (RCM)
backup power supply must be
depleted. Wait at least 1 minute after disconnecting the startup battery
ground cable(s) before doing any
repair or adjustment to the Supplementary Restraint System (SRS), or any
component(s) adjacent to the
SRS sensors. Failure to follow these instructions may result in personal
injury.
- Do not probe the SRS electrical connectors.
NOTE:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
1.
NOTE:
This step must be completed on both sides of the vehicle.
.png)

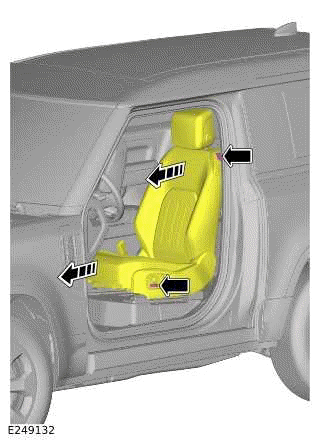

Position the front row seats forward.
2. Disconnect the startup battery ground cable.
3. Make the SRS system safe.
4.
.png)

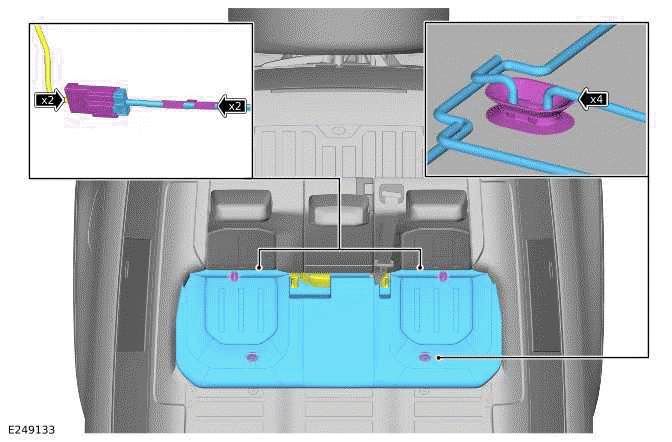

- Release the 4 fasteners.
- Release the second row seat cushion.
- Disconnect the 2 electrical connectors.
- Release the 2 wiring harness clips.
- Remove the second row seat cushion.
5.
.png)

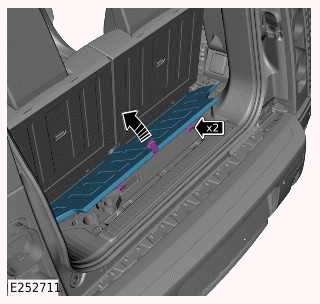

Remove the loadspace floor trim.
6.
.png)

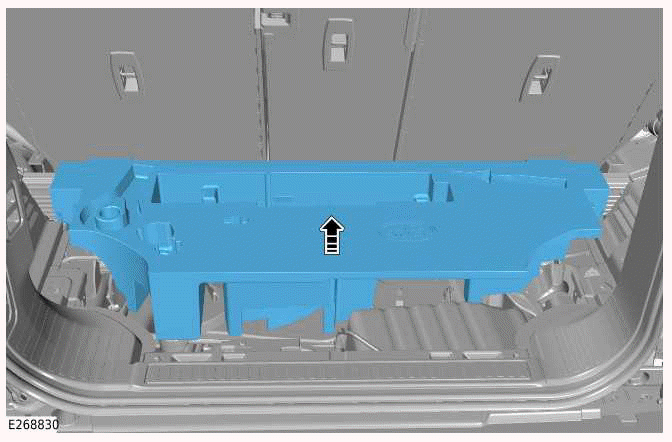

Remove the stowage compartment.
7.
.png)

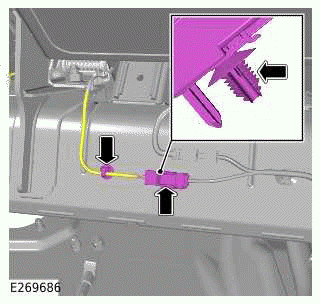

- Disconnect the electrical connector.
- Release the wiring harness clip.
- Release the electrical connector clip.
8.
.png)

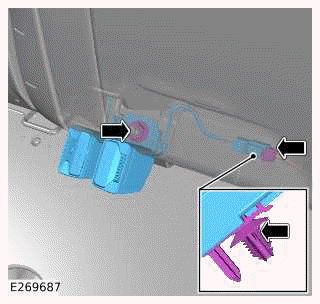

- Disconnect the electrical connector.
- Release the electrical connector clip.
- Remove and discard the nut.
- Remove the second row center seatbelt buckle.
INSTALLATION
1.
2. Install the stowage compartment.
3. Install the loadspace floor trim.
4.
- Connect the 2 second row seat cushion heating element electrical
connectors.
- Install the 2 wiring harness clips.
- Install the second row seat cushion.
5. Connect the startup battery ground cable.
6.
NOTE:
This step must be completed on both sides of the vehicle.
Reposition the front row seats to the center position.
