Land Rover Defender: Third Row Seatbelt Retractor
REMOVAL AND INSTALLATION
PART(S)
.png)
REMOVAL
NOTE:
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations for left side components, right
side components are similar.
1.
WARNING:
Take extra care when handling Supplementary Restraint System (SRS) components.
Before handling any components within the SRS, make sure that the safety
guidelines are followed.
2. Disconnect the startup battery ground cable.
3. To avoid accidental airbag deployment, wait at least 1 minutes after you
disconnect the startup battery
ground cable.
4. Remove the rear junction box.
5. Remove the right loadspace trim panel.
6. Remove the D-pillar trim panel.
7.
.png)

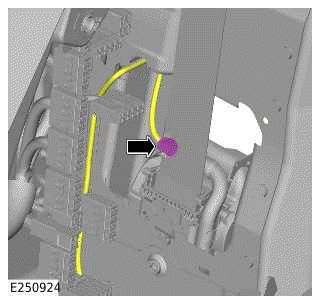

Disconnect the electrical connector.
8.
.png)

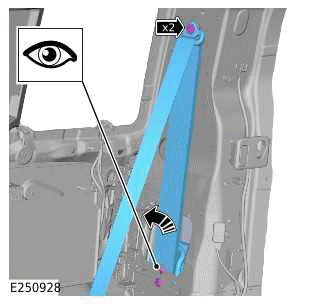

- Note the orientation of the component prior to removal.
- Remove the bolt and the seatbelt upper anchor.
- Remove the seatbelt retractor bolt.
- Remove the third row seatbelt retractor and belt assembly.
INSTALLATION
1.
CAUTION:
Make sure that the component is correctly located.
2. Install the D-pillar trim panel.
3. Install the right loadspace trim panel.
4. Install the Rear Junction Box.
5. Connect the startup battery ground cable.
