Land Rover Defender: Second Row Center Seatbelt Buckle - [+] 7 Seat Configuration, 110
Land Rover Defender 2020-2026 Service Manual / Body and Paint / Seatbelt System / Second Row Center Seatbelt Buckle - [+] 7 Seat Configuration, 110
REMOVAL AND INSTALLATION
PART(S)
.png)
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
The following step(s) applies to: All vehicles
1. Disconnect the battery ground cable.
The following step(s) applies to: Vehicles with third row seats
2.
.png)

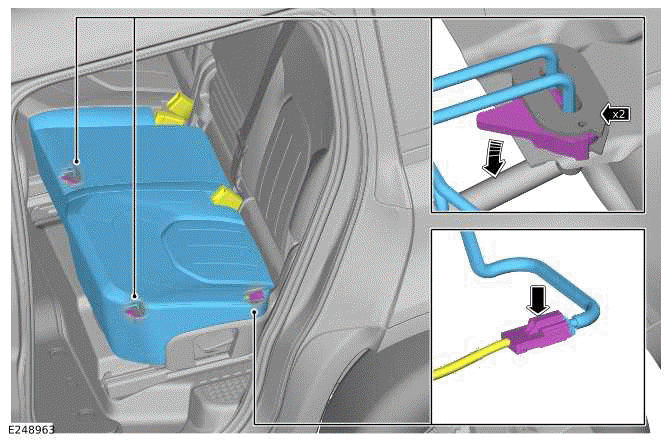

- Release the 2 fasteners.
- Release the second row seat cushion.
- Disconnect the seat cushion heating element electrical connector.
- Remove the second row seat cushion.
3.
.png)

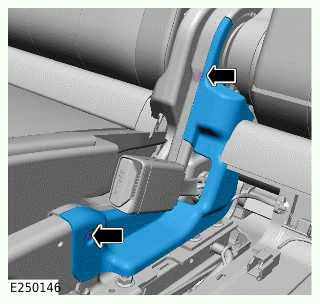

- Release the clip.
- Remove the bolt.
- Remove the cover.
4.
.png)

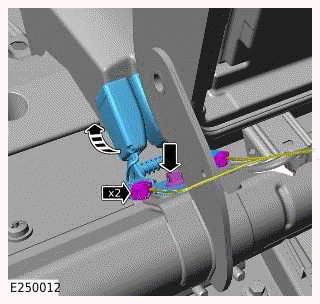

- Disconnect the electrical connector.
- Release the 2 clips.
- Release the bolt.
- Remove the second row center seatbelt buckle assembly.
The following step(s) applies to: Vehicles without third row seats
5.
.png)

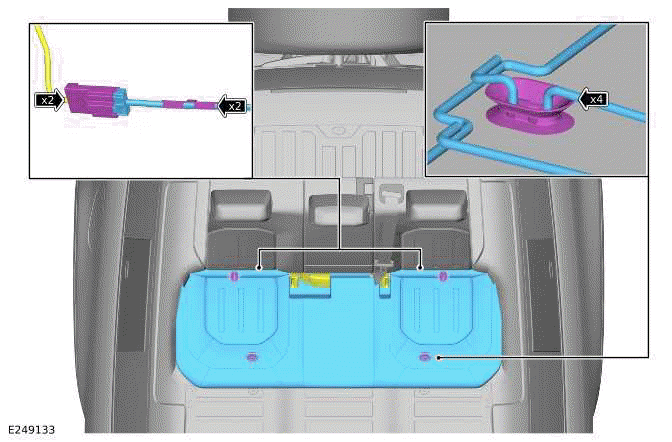

- Release the 4 fasteners.
- Release the second row seat cushion.
- Disconnect the 2 electrical connectors.
- Release the 2 wiring harness clips.
- Remove the second row seat cushion.
6.
.png)

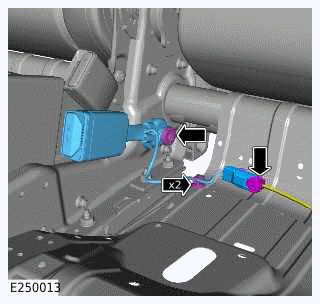

- Remove the 2 electrical connectors.
- Remove and discard the nut.
- Remove the rear seatbelt buckle.
7.
NOTE: If equipped.
.png)

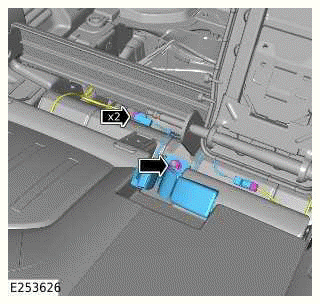

- Remove the 2 electrical connectors.
- Remove and discard the nut.
- Remove the rear seatbelt buckle.
INSTALLATION
The following step(s) applies to: Vehicles without third row seats
1.
- Install the rear seatbelt buckle.
- Install and tighten the new nut.

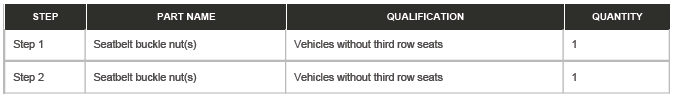

Renew Part: Seatbelt buckle nut(s) Quantity: 1.
Torque: 48Nm
- Connect the 2 electrical connectors.
2.
NOTE: If equipped.
- Install the rear seatbelt buckle.
- Install and tighten the new nut.
Renew Part: Seatbelt buckle nut(s) Quantity: 1.
Torque: 48Nm
- Connect the 2 electrical connectors.
3.
- Connect the 2 second row seat cushion heating element electrical connectors.
- Install the 2 wiring harness clips.
- Install the second row seat cushion.
The following step(s) applies to: Vehicles with third row seats
4.
- Install the second row seat center seatbelt buckle assembly.
- Tighten the bolt.
Torque: 40Nm
- Install the 2 clips.
- Connect the electrical connector.
5.
- Connect the seat wiring harness electrical connector.
- Install the 2 wiring harness clips.
- Connect the seat cushion heating element electrical connector.
- Install the second row seat cushion.
The following step(s) applies to: All vehicles
6. Connect the battery ground cable.
