Land Rover Defender: Front Row Seatbelt Retractor - 110

REMOVAL AND INSTALLATION

PART(S)

Front Row Seatbelt Retractor - 110

REMOVAL

WARNING:

NOTE:

1. Before handling any components within the SRS, make sure that the safety guidelines are followed.

2. To avoid accidental deployment, wait at least 1 minute after you disconnect the startup battery ground cable.

3. Remove the front row seat.

4. Remove the rear treadplate.

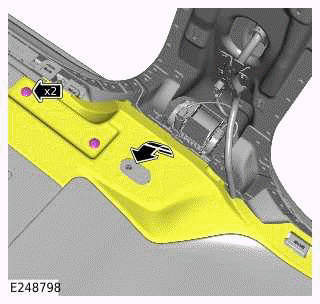

5.

Front Row Seatbelt Retractor - 110

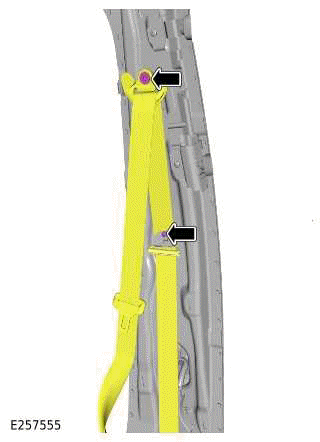

6.

Front Row Seatbelt Retractor - 110

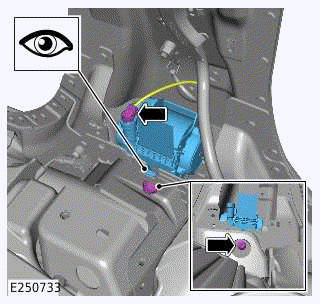

7.

Front Row Seatbelt Retractor - 110

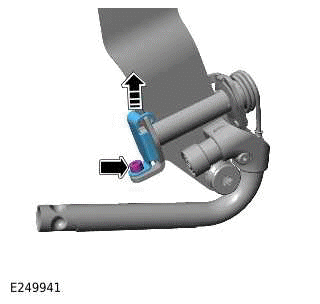

8.

CAUTION: Only complete the following step(s) if a new component is to be installed.

NOTE: If equipped.

Front Row Seatbelt Retractor - 110

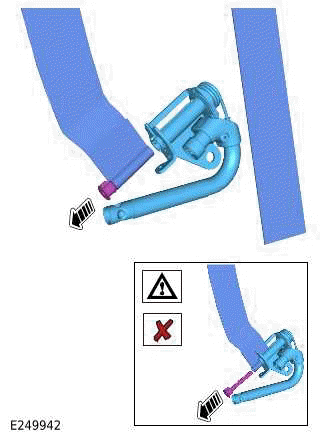

9.

CAUTION: Do not remove the pin from the seatbelt.

NOTE: If equipped

Front Row Seatbelt Retractor - 110

INSTALLATION

1.

CAUTION: Only complete the following step(s) if the component was previously removed.

NOTE: If equipped.

2.

NOTE: If equipped.

3.

CAUTION: Make sure that the component is correctly located.

4.

5.

6. Install the rear treadplate.

7.
