Land Rover Defender: Front Row Seatbelt Retractor - 90
REMOVAL AND INSTALLATION
PART(S)
.png)
REMOVAL
WARNING:
NOTE:
- Note the orientation of the components.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations for right side components, left
side components are similar.
1. Before handling any components within the Supplementary Restraint System
(SRS), make sure that the
safety guidelines are followed.
2. Disconnect the startup battery ground cable.
3. To avoid accidental deployment, wait at least 1 minute after you
disconnect the startup battery ground cable.
4. Remove the rear quarter trim panel.
5. Remove the B-pillar upper trim panel.
6.
.png)

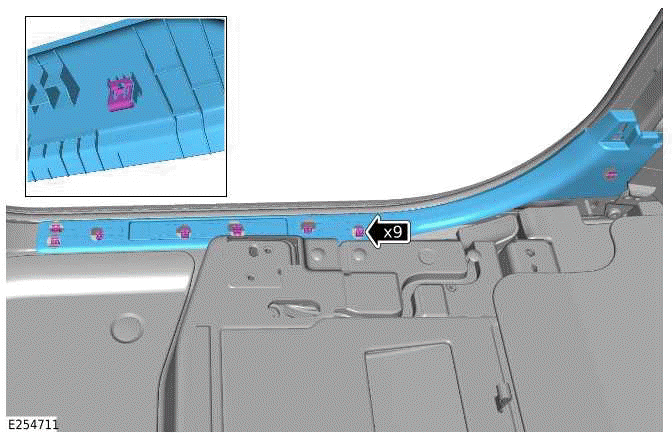

- Release the 9 clips.
- Remove the front treadplate.
7.
.png)

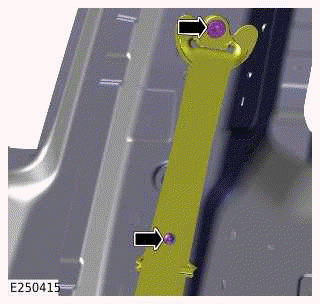

- Remove the upper seatbelt anchor point bolt.
- Remove the bolt.
- Release the seatbelt guide from the B-pillar.
8.
.png)

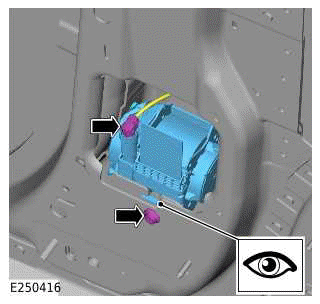

- Disconnect the electrical connector.
- Remove and discard the bolt.
- Remove the front row seatbelt retractor from the B-pillar.
INSTALLATION
1.
CAUTION:
Make sure that the component is correctly located.
2.
- Install the front row seatbelt upper anchor and bolt.
- Tighten the upper seatbelt anchor point bolt.
Torque: 40Nm
- Install the seatbelt guide onto the B-pillar.
- Install and tighten the bolt.
Torque: 9Nm
3.
- Install the 9 clips.
- Install the front treadplate.
4. Install the B-pillar upper trim panel.
5. Install the rear quarter trim panel.
6. Connect the startup battery ground cable.
