Land Rover Defender: Third Row Seatbelt Buckle
Land Rover Defender 2020-2024 Service Manual / Body and Paint / Seatbelt System / Third Row Seatbelt Buckle
REMOVAL AND INSTALLATION
REMOVAL
NOTE:
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
1. Remove the third row seat.
2.
.png)

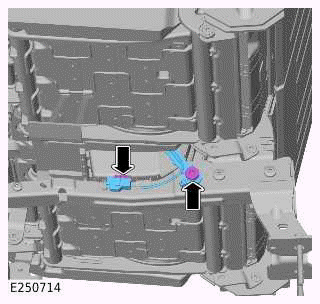

Disconnect the electrical connector.
3.
.png)

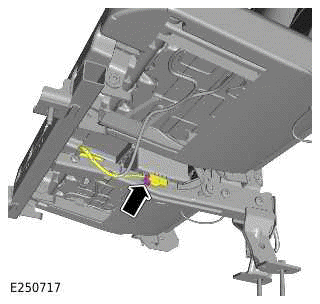

- Release the clip.
- Remove the bolt.
4.
.png)

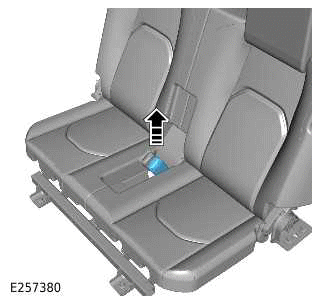

Remove the third row seatbelt buckle.
INSTALLATION
1.
- Install the third row seatbelt buckle.
- Tighten the bolt.
Torque: 40Nm
- Install the clip.
2. Connect the electrical connector to the third row seatbelt buckle.
3. Install the third row seat.
