Land Rover Defender: Rear Drive Axle/Differential
SPECIFICATIONS

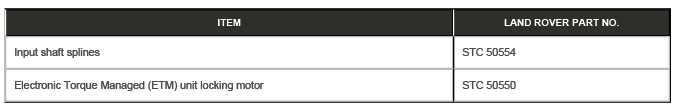

Sealers
NOTE: Do not use any lubricant other than that specified.
.png)

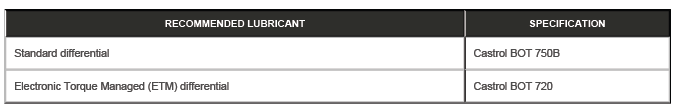

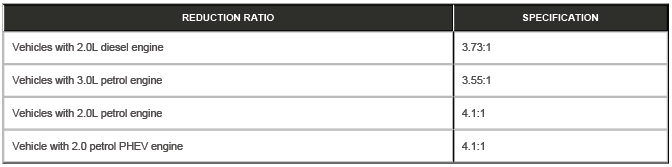

Lubricants
.png)

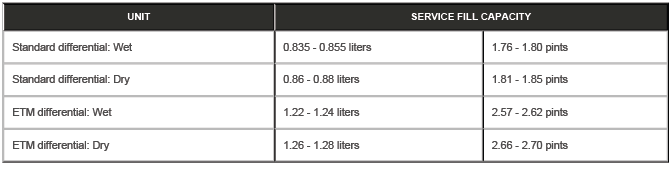

Capacities
.png)

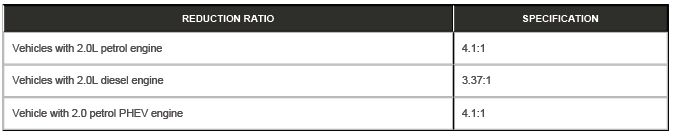

Rear 'standard' Differential
.png)
Rear Electronic Torque Managed (ETM) Differential
.png)

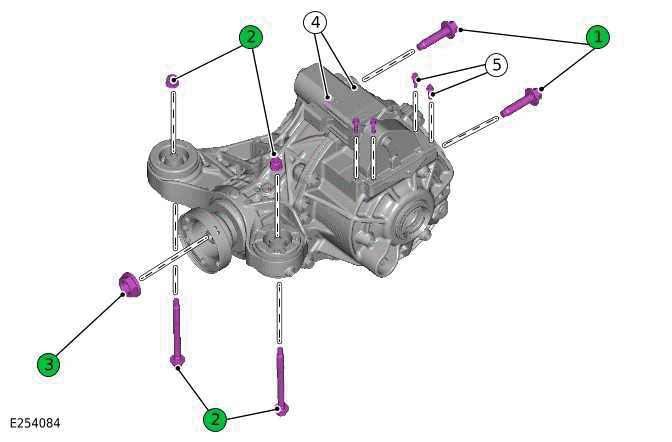

Torque Specifications
NOTE: Numbers with a green background are a single use component.
COMPONENT TORQUE LOCATION
.png)
.png)

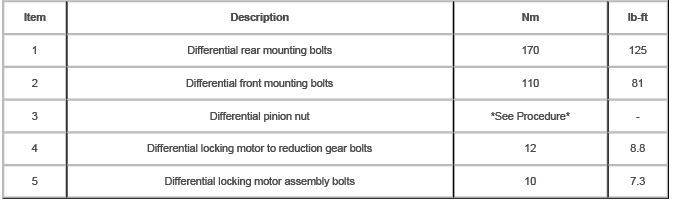

Torque Specifications
COMPONENT TORQUE LOCATION
.png)
.png)

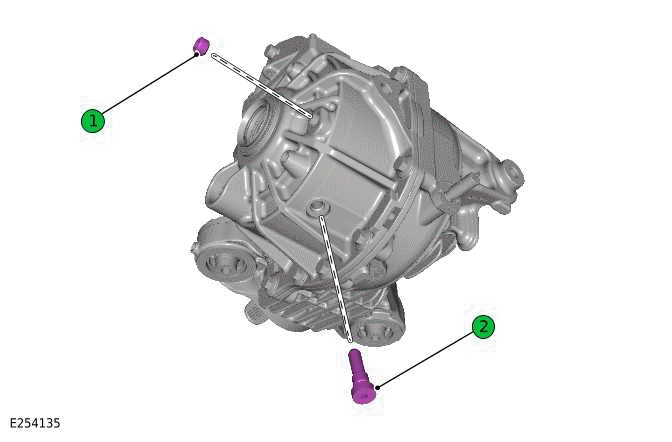

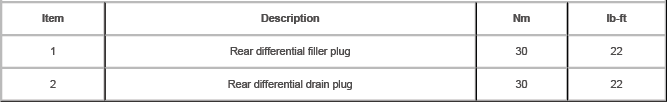

Torque Specifications
NOTE: Numbers with a green background are a single use component.
COMPONENT TORQUE LOCATION
.png)
.png)
- Rear Drive Axle and Differential - Description and Operation
- Rear Drive Axle and Differential - Diagnosis and Testing
- Differential Draining and Filling
- Differential
- Differential Fluid Temperature Sensor
- Differential Front Bush

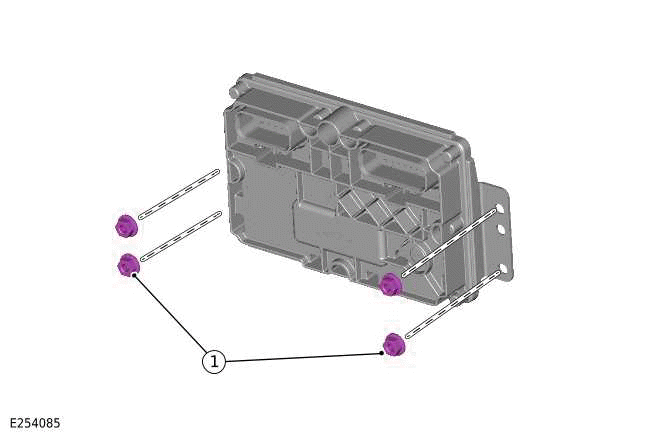

- Rear Differential Control Module
