Land Rover Defender: Differential Locking Motor
REMOVAL AND INSTALLATION
REMOVAL
NOTES:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but
the essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
- The differential locking motor is supplied with new bolts.
1. Raise and support the vehicle on a suitable 2 post lift.
2. Remove the differential.
3.

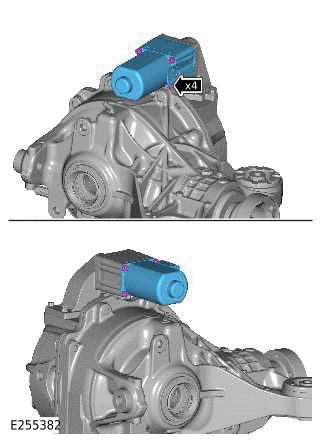

.png)
- Remove and discard the 4 bolts.
- Remove the differential locking motor assembly.
INSTALLATION
1.
- Install the differential locking motor assembly.
- Install the 4 new bolts.
Torque: 10Nm
2. Install the differential.
