Land Rover Defender: Rear Differential Control Module
REMOVAL AND INSTALLATION
GENERAL EQUIPMENT
.png)
REMOVAL
NOTE:
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
The following step(s) applies to: All vehicles
1. Disconnect the startup battery ground cable.
The following step(s) applies to: Vehicles with third row seats
2. Remove the third row seats.
The following step(s) applies to: Vehicles without third row seats
3. Remove the right loadspace trim panel.
4.
.png)

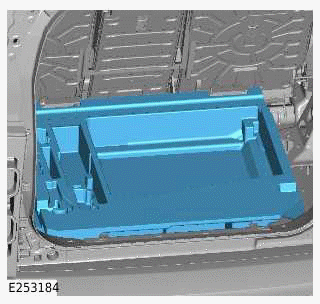

Remove the stowage compartment.
The following step(s) applies to: All vehicles
5.
.png)

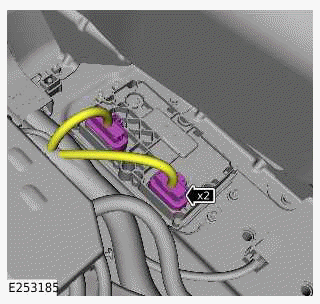

Disconnect the 2 electrical connectors.
6.
.png)

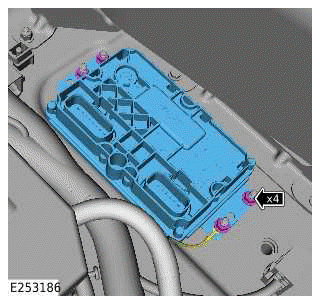

- Remove the 4 nuts.
- Reposition the ground cable away from the control module.
- Remove the Rear Differential Control Module (RDCM).
INSTALLATION
The following step(s) applies to: All vehicles
1.
- Install the RDCM.
- Position the ground cable in the correct location.
- Install and tighten the 4 nuts.
Torque: 9Nm
2. Connect the 2 electrical connectors.
The following step(s) applies to: Vehicles without third row seats
3. Install the stowage compartment.
4. Install the right loadspace trim panel.
The following step(s) applies to: Vehicles with third row seats
5. Install the third row seats.
The following step(s) applies to: All vehicles
6. Connect the startup battery ground cable.
7. If a new component has been installed, configure with Jaguar Land Rover (JLR) approved diagnostic equipment.
General Equipment: Jaguar Land Rover approved diagnostic equipment
