Land Rover Defender: Differential Draining and Filling
Land Rover Defender 2020-2025 Service Manual / Chassis / Driveline / Rear Drive Axle/Differential / Differential Draining and Filling
GENERAL PROCEDURES
PART(S)
.png)
DRAINING
WARNING: Be prepared to collect escaping fluid.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
1. Raise and support the vehicle on a suitable 2 post lift.
2.
.png)

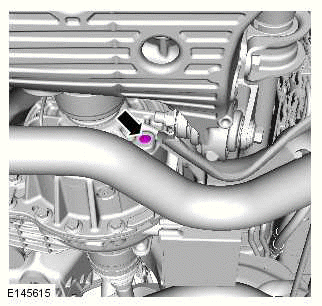

- Clean the area around the fluid filler plug.
- Position a suitable container under the rear differential.
- Remove and discard the fluid filler plug.
3.
.png)

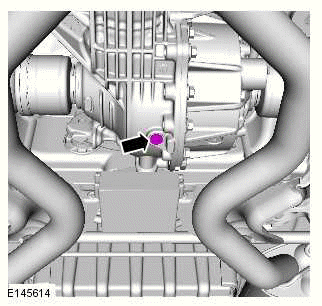

- Clean the area around the fluid drain plug.
- Remove and discard the fluid drain plug.
- Allow the fluid to drain.
4.
.png)
- Install and tighten the new drain plug.
Renew Part: Rear differential drain plug Quantity: 1.
Torque: 30Nm
FILLING
1. Fill the rear differential with the correct specification of fluid.
2.
.png)
- Install and tighten the new filler plug.
Renew Part: Rear differential fill plug Quantity: 1.
Torque: 30Nm
3.
- Clean the area around the fluid filler plug, wipe away any excess fluid.
- Remove the container.
