Land Rover Defender: Tire Pressure Sensor
REMOVAL AND INSTALLATION
GENERAL EQUIPMENT
.png)
PART(S)
.png)
CAUTIONS:
- Take extra care not to damage the sensor during the removal and
refitting of the tire.
- If a new sensor is installed, make sure that the sensor type and
frequency is the same as the sensor that
has been removed. Failure to follow this instruction may result in the
system malfunction.
NOTES:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
1. Raise and support the vehicle on a suitable 2-post lift.

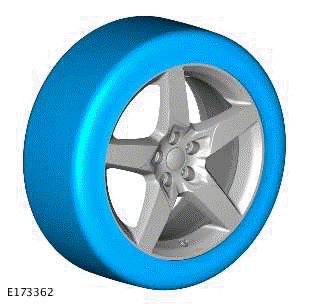

2. Remove the wheel and tire.
3.
.png)

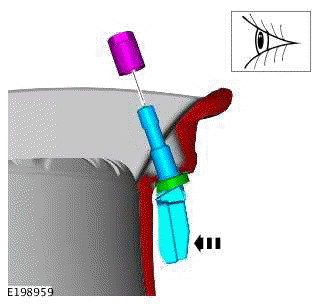

Remove the tire from the wheel, release the tire bead from the rim 180
degrees from the valve.
4.
.png)

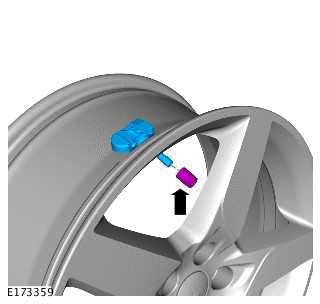

- Remove the nut.
- Remove the tire pressure sensor.
5.
NOTE:
Record the identification code found on the casing of the sensor.
.png)
Remove and discard the tire pressure sensor washer and seal.
INSTALLATION
1. Clean the valve seat on the wheel.
2.
.png)

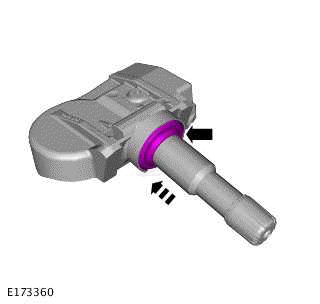

Install a new washer and seal to the tire pressure sensor.
3.
CAUTION:
Make sure that the seal is correctly located.
.png)
- Install the tire pressure sensor as illustrated.
- Install and tighten the nut.
Torque: 8Nm
4.
- Install the tire to the wheel.
- Balance the wheel and tire assembly.
5. Remove the wheel and tire.
6. Use the Jaguar Land Rover (JLR)approved diagnostic equipment to configure
the new tire pressure sensor.
General Equipment: Jaguar Land Rover approved diagnostic equipment
