Land Rover Defender: Tire Pressure Monitoring System Control Module
Land Rover Defender 2020-2026 Service Manual / Chassis / Wheels and Tires / Tire Pressure Monitoring System Control Module
REMOVAL AND INSTALLATION
GENERAL EQUIPMENT
EQUIPMENT NAME
Jaguar Land Rover approved diagnostic equipment
REMOVAL
NOTES:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
1. Remove the headliner.

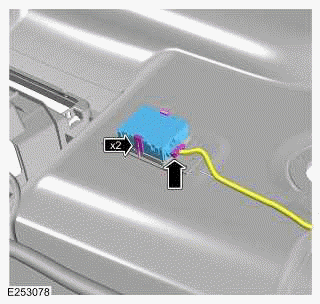

2.
.png)
- Disconnect the electrical connector.
- Release the 2 clips.
- Remove the Tire Pressure Monitoring System Control Module (TPM).
INSTALLATION
CAUTIONS:
- Before replacing the TPM, inspect the voltage is present on the TPM harness connector: +12V pin 1, with respect to the ground pin 4 on the TPM harness connector. If the 12V is present, then re-insert the TPM harness connector, and re-inspect the Instrument Panel Cluster (IPC) to see if the TPM icon stops flashing.
- Before replacing the TPM, make sure the TPM harness connector is firmly connected into the module, (remove and re-insert the TPM harness connector), and re-inspect the IPC to see if the TPM icon stops flashing.
1.
- Install the TPM.
- Connect the electrical connector.
2. Install the headliner.
3. Use the Jaguar Land Rover (JLR) approved diagnostic equipment to configure the TPM.
General Equipment: Jaguar Land Rover approved diagnostic equipment
