Land Rover Defender: Wheels and Tires
Land Rover Defender 2020-2026 Service Manual / Chassis / Wheels and Tires
SPECIFICATIONS

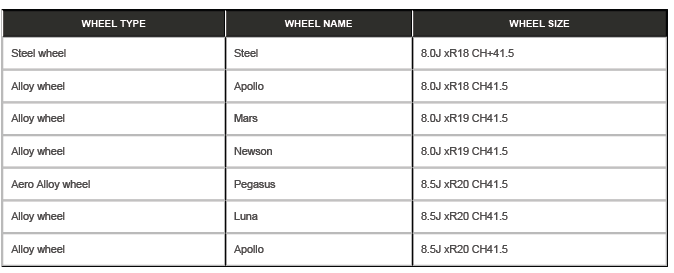

Wheels
.png)

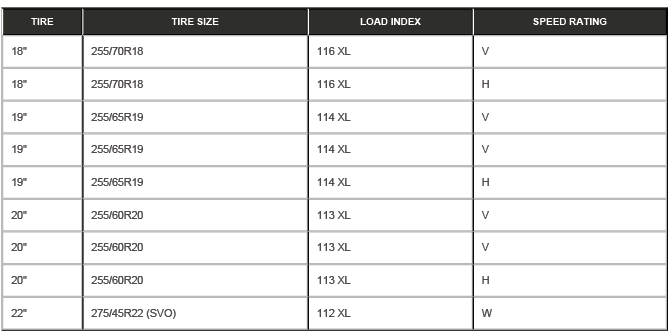

Tire Size
NOTES:
- The tire size is displayed on the outer wall of each tire.
- All Range Rover tires are rated as XL (Extra Load) or 'Reinforced'
.png)
Tire Pressures
.png)

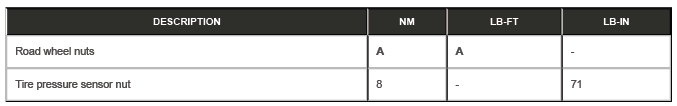

Torque Specifications
NOTE: A- refer to the procedure for correct torque sequence.
.png)
.png)
- Tire Pressure Monitoring System - Description and Operation
- Tire Pressure Monitoring System Locsync
- Tire Pressure Monitoring System - Diagnosis and Testing
- Wheels and Tires - Diagnosis and Testing
- Tire Pressure Sensor
- Wheel and Tire - Removal and Installation
- Tire Pressure Monitoring System Control Module
