Land Rover Defender: Vehicle Dynamic Suspension
Land Rover Defender 2020-2026 Service Manual / Chassis / Vehicle Dynamic Suspension
SPECIFICATIONS

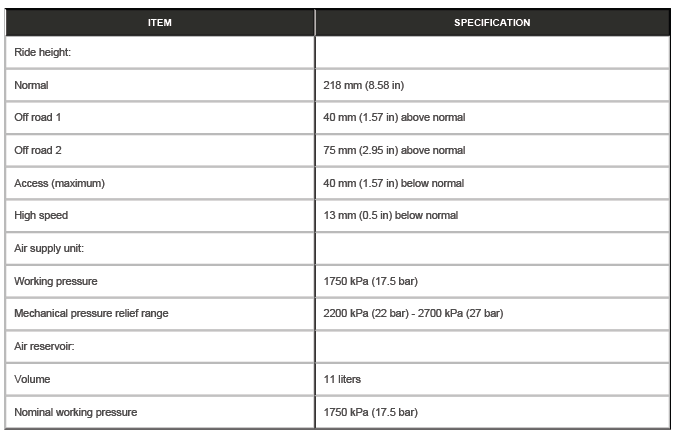

General Specification
.png)

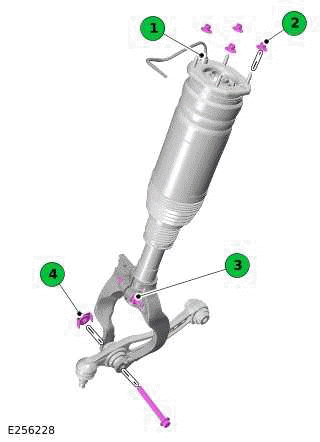

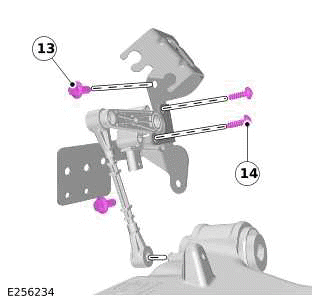

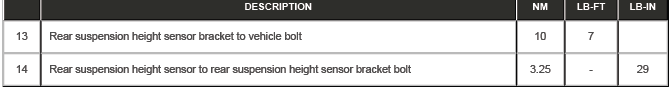

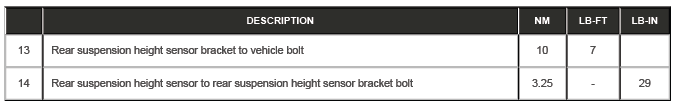

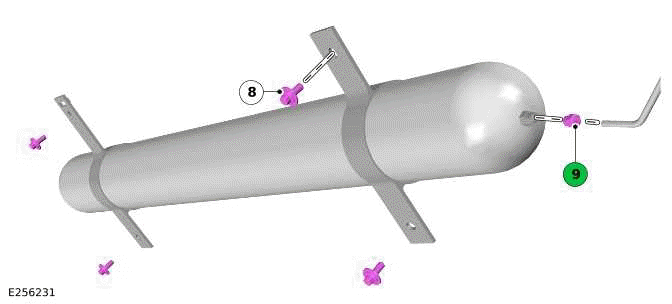

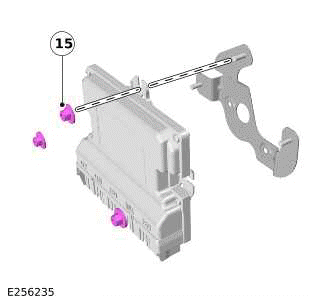

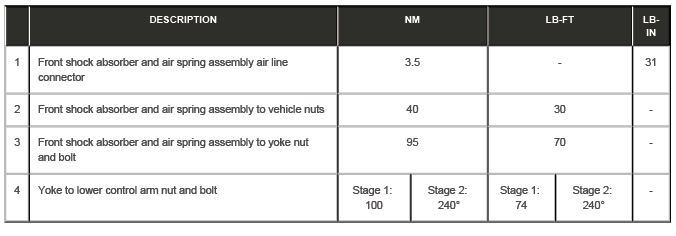

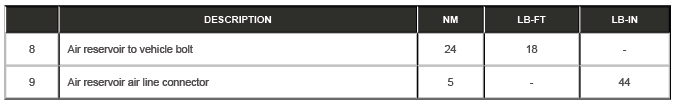

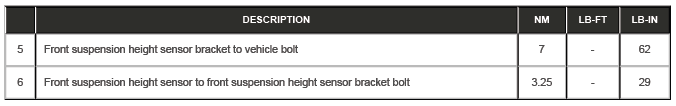

Torque Specifications
COMPONENT TORQUE LOCATION
.png)
NOTE: Numbers with green background are a single use component.
.png)
COMPONENT TORQUE LOCATION
.png)
.png)
COMPONENT TORQUE LOCATION
.png)
NOTE: Numbers with green background are a single use component.
.png)
COMPONENT TORQUE LOCATION
.png)
NOTE: Numbers with green background are a single use component.
.png)
COMPONENT TORQUE LOCATION
.png)
NOTE: Numbers with green background are a single use component.
.png)
COMPONENT TORQUE LOCATION
.png)
NOTE: Numbers with green background are a single use component.
.png)

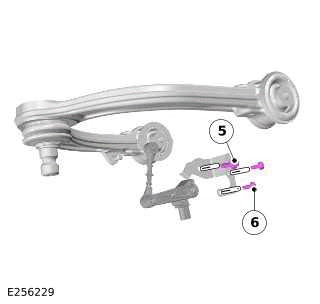

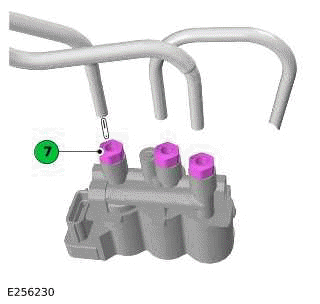

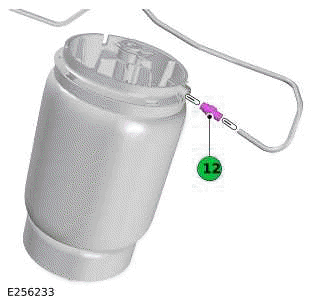

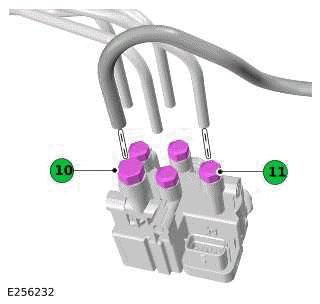

COMPONENT TORQUE LOCATION
.png)
.png)
COMPONENT TORQUE LOCATION
.png)
.png)
- Vehicle Dynamic Suspension - Description and Operation
- Vehicle Dynamic Suspension - Diagnosis and Testing
- Air Line Connector
- Air Suspension Manual Tight Tolerance Setting Mode
- Ride Height Adjustments
- Air Suspension Compressor
- Air Suspension Control Module
- Front Air Reservoir Valve Block
- Air Suspension Reservoir
- Front Suspension Height Sensor
- Rear Air Spring
- Rear Suspension Height Sensor
- Rear Air Reservoir Valve Block
