Land Rover Defender: Rear Junction Box
REMOVAL AND INSTALLATION
PART(S)
.png)
NOTE:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
The following step(s) applies to:
All vehicles
1. Disconnect the startup battery ground cable.
The following step(s) applies to:
3-door
2. Remove the right rear quarter trim panel.

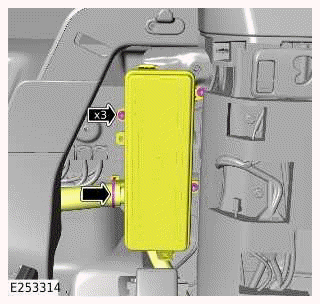

3.
.png)
- Remove the 3 nuts.
- Cut and discard the clip.
- Release the Rear Junction Box (RJB).
The following step(s) applies to:
5-door
4. Remove the right loadspace trim panel.

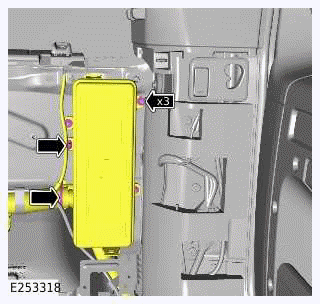

5.
.png)
- Remove the 3 nuts.
- Release the clip.
- Cut and discard the clip.
- Release the RJB.
The following step(s) applies to:
All vehicles

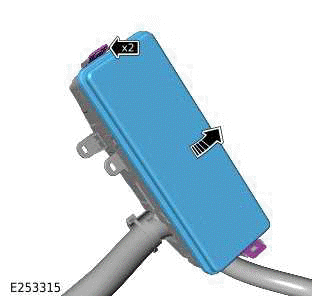

6.
.png)
- Release the 2 clips.
- Remove the RJB front cover.

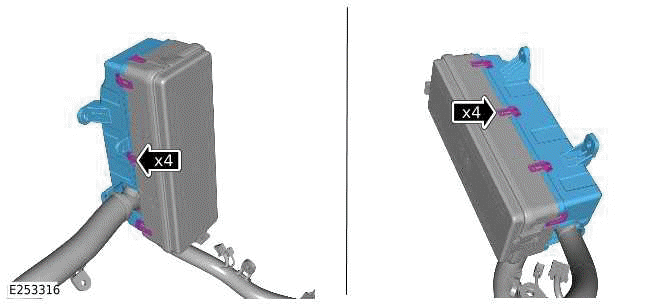

7.
.png)
- Release the 8 clips.
- Remove the RJB rear cover.

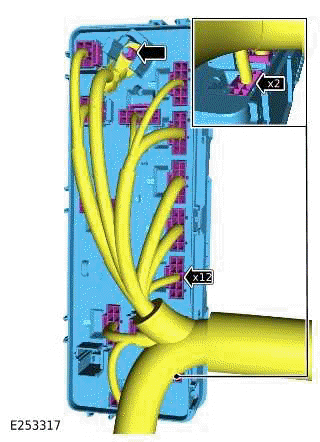

8.
CAUTION:
Note the correct position of the electrical connectors.
.png)
- Remove the nut.
- Disconnect the 14 electrical connectors.
- Remove the RJB.
INSTALLATION
The following step(s) applies to:
All vehicles
1.
- Install the Rear Junction Box (RJB).
- Connect the 14 electrical connectors to the RJB.
- Install and tighten the nut.
Torque: 15Nm
2.
- Install the 8 clips.
- Install the RJB rear cover.
3.
- Install the 2 clips.
- Install the RJB front cover.
4.
The following step(s) applies to:
5-door
5. Install the right loadspace trim panel.
The following step(s) applies to:
3-door
6. Install the right rear quarter trim panel.
The following step(s) applies to:
All vehicles
7. Connect the startup battery ground cable.
