Land Rover Defender: Transmission Fluid Cooler - Ingenium I4 2.0l Petrol
Land Rover Defender 2020-2026 Service Manual / Powertrain / Automatic Transmission / Automatic Transmission Cooling / Transmission Fluid Cooler - Ingenium I4 2.0l Petrol
REMOVAL AND INSTALLATION
REMOVAL
CAUTION:
- Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
- Be prepared to collect escaping fluids.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
1. Raise and support the vehicle on a suitable 2 post lift.
2. Partially drain the cooling system.
3.
.png)

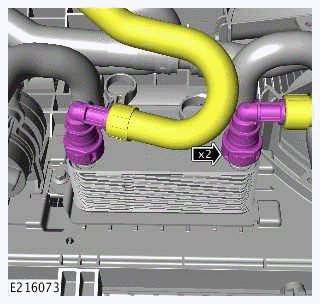

Disconnect the 2 transmission fluid cooler pipes.
4.
.png)

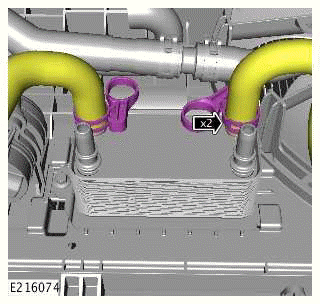

Disconnect the 2 coolant hoses.
5.
.png)

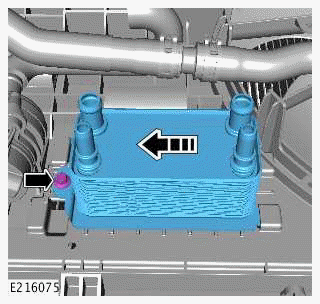

- Remove the bolt.
- Remove the transmission fluid cooler.
INSTALLATION
1.
- Install the transmission fluid cooler.
- Install and tighten the bolt.
Torque: 11Nm
2. Install the 2 coolant hoses.
3. Install the 2 transmission fluid cooler pipes.
4. Fill the cooling system.
5. Carry out a transmission fluid level check.
