Land Rover Defender: Automatic Transmission Cooling
Land Rover Defender 2020-2026 Service Manual / Powertrain / Automatic Transmission / Automatic Transmission Cooling

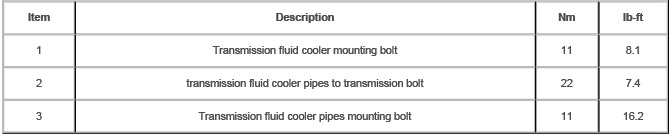

SPECIFICATIONS

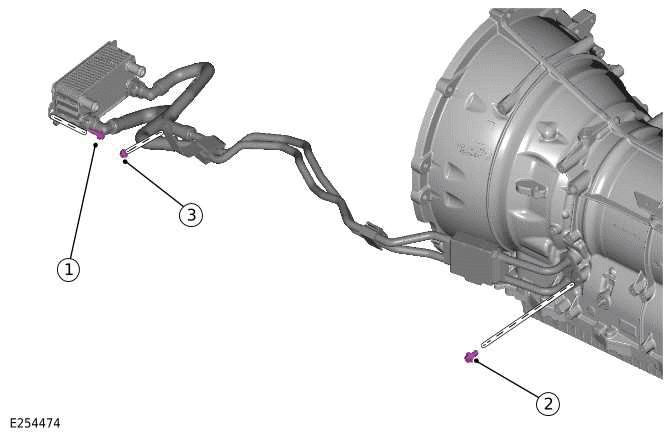

COMPONENT TORQUE LOCATION
.png)
.png)
- Transmission Cooling - Vehicles With: 8HP76 8-Speed Automatic Transmission, AWD
- Transmission Cooling - Vehicles With: 8HP45 8-Speed Automatic Transmission AWD
- Transmission Cooling - Vehicles With: 8HP70 8-Speed Automatic Transmission AWD
- Transmission Fluid Cooler - Ingenium I4 2.0l Petrol
- Transmission Fluid Cooler Pipes - Ingenium I4 2.0l Petrol
READ NEXT:
Transmission Cooling - Vehicles With: 8HP76 8-Speed Automatic
Transmission, AWD
DESCRIPTION AND OPERATION
COMPONENT LOCATION
Engine cooling radiator
Engine coolant inlet
Supply pipe - from transmission
Return pipe - to transmission
Automatic Transmission Fluid (ATF) cooler
Transmission Cooling - Vehicles With: 8HP45 8-Speed Automatic Transmission
AWD
DESCRIPTION AND OPERATION
COMPONENT LOCATION
Engine cooling radiator
Engine coolant inlet
Supply pipe - from transmission
Return pipe - to transmission
Engine coolant outlet
Automatic Transmis
Transmission Cooling - Vehicles With: 8HP70 8-Speed Automatic Transmission
AWD
DESCRIPTION AND OPERATION
COMPONENT LOCATION
Engine cooling radiator
Engine coolant inlet
Transmission coolant inlet
Transmission coolant outlet
Engine coolant outlet
Engine coolant outlet
