Land Rover Defender: Automatic Transmission
Land Rover Defender 2020-2025 Service Manual / Powertrain / Automatic Transmission
SPECIFICATIONS
Lubricants
CAUTION: Make sure the correct Automatic Transmission Fluid (ATF) is used as specified. Use of any other fluids may result in a malfunction or failure.
.png)

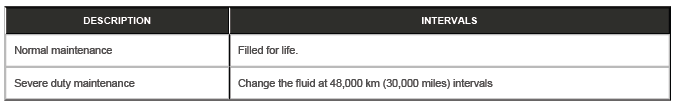

Maintenance
.png)

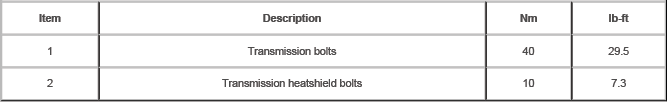

Torque Specifications
NOTE: Numbers with a green background are a single use component.

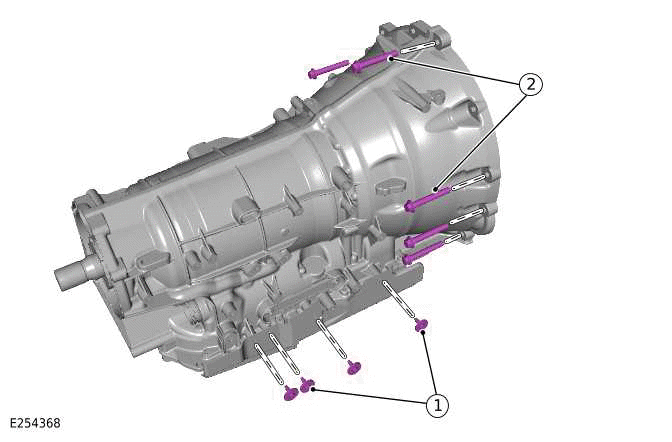

COMPONENT TORQUE LOCATION
.png)
.png)
.png)

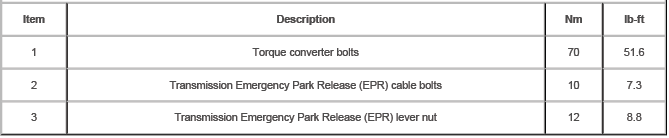

Torque Specifications

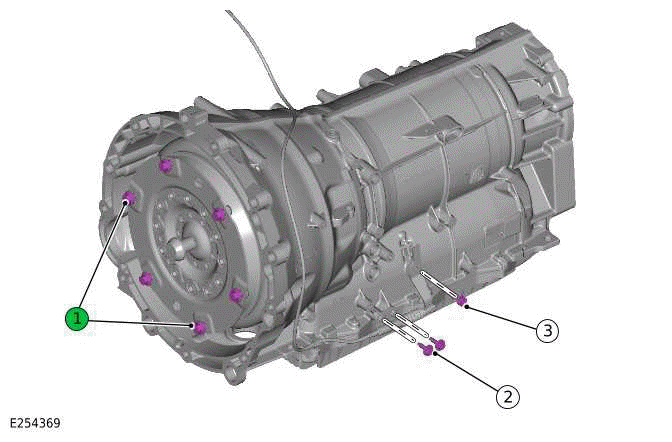

COMPONENT TORQUE LOCATION
.png)
.png)
Torque Specifications
NOTE: Numbers with a green background are a single use component.

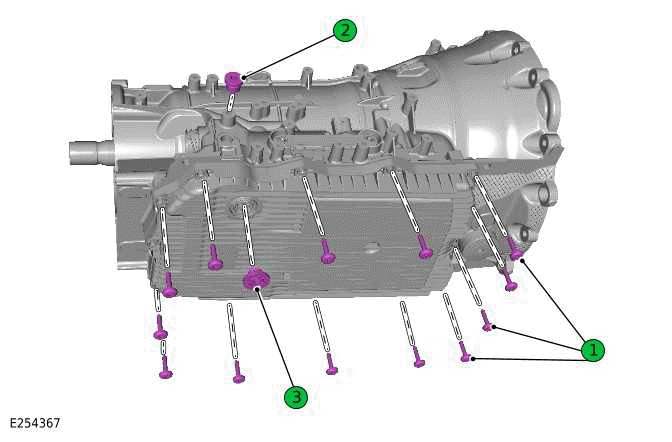

COMPONENT TORQUE LOCATION
.png)
.png)
