Land Rover Defender: Transfer Case
Land Rover Defender 2020-2025 Service Manual / Powertrain / Transfer Case
SPECIFICATIONS

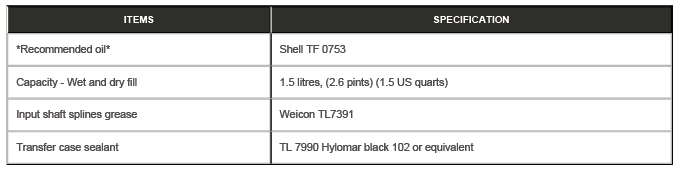

Lubricants and sealers
NOTE: Do not use any lubricant other than that specified
.png)

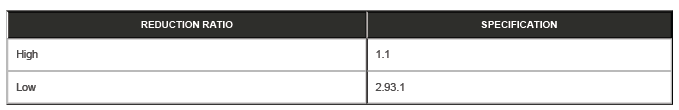

Transfer Case Ratio
.png)
Torque Specification
NOTE: Numbers with a green background are a single use component.

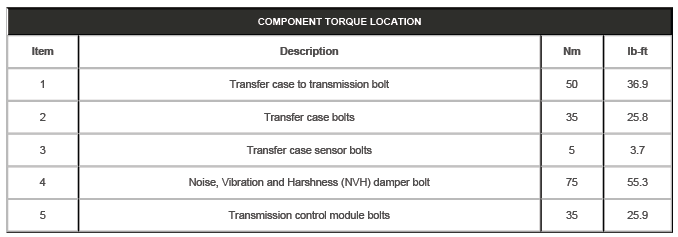

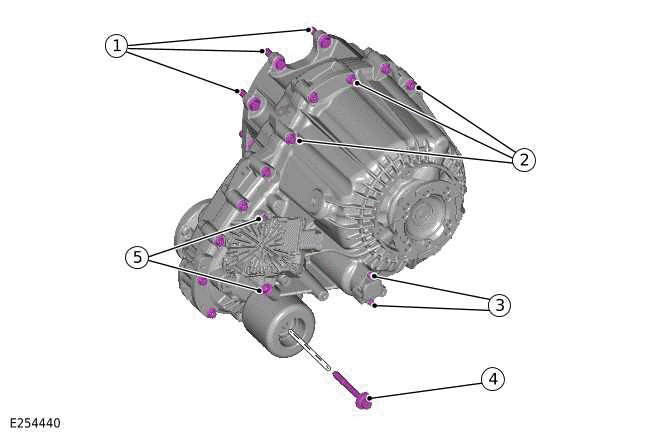

COMPONENT TORQUE LOCATION
.png)
.png)

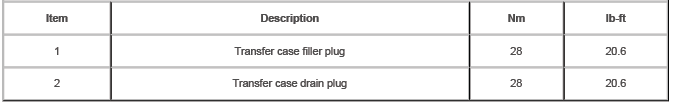

Torque Specifications

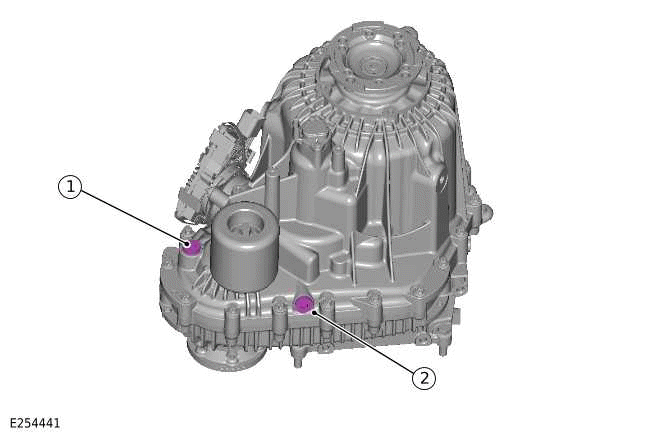

COMPONENT TORQUE LOCATION
.png)
.png)
- Transfer Case - Description and Operation
- Transfer Case - Diagnosis and Testing
- Transfer Case Draining and Filling
- Transfer Case Front Output Seal
- Transfer Case Front Output Shaft Bearing
- Transfer Case Rear Output Seal
- Transfer Case Rear Output Shaft Bearing
- Transfer Case Input Seal
- Transfer Case - Removal
- Transfer Case - Installation
- Four-Wheel Drive Systems
READ NEXT:
Component Location, Overview
COMPONENT LOCATION
COMPONENT LOCATION - 1 OF 1
Twin speed transfer case
OVERVIEW
The twin speed transfer case is full time, permanent all wheel drive unit,
with 50/50 torque distribution to the f
Description
TRANSFER CASE EXPLODED VIEW
Synchronization spring (quantity 3)
Spring bracket
Multiplate clutch ( 10 friction plates, 10 steel plates)
Synchronization cup
Drum clutch
Plate clutch pack
Synch
