Land Rover Defender: Transfer Case - Removal
REMOVAL
SPECIAL TOOL(S)
.png)
303-1069
Adapter, Wrench
GENERAL EQUIPMENT
EQUIPMENT NAME
NOTES:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
- Before disconnecting any components, make sure the area is clean and
free from foreign material. When
disconnected all openings must be sealed.
1. Raise and support the vehicle on a suitable 2 post lift.
2. Drain the transfer case.
3. Remove the transmission support crossmember.
4. Remove the rear driveshaft.

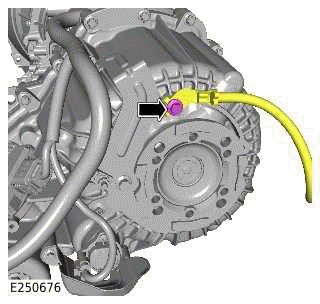

5.
.png)
- Remove the bolt.
- Reposition the ground cable away from the transfer case.

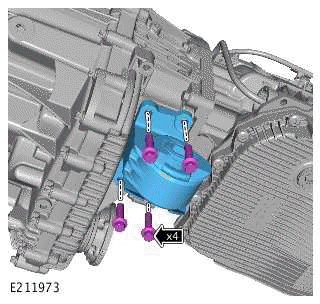

6.
.png)
- Remove the 4 bolts.
- Remove the Noise, Vibration and Harshness (NVH) damper.

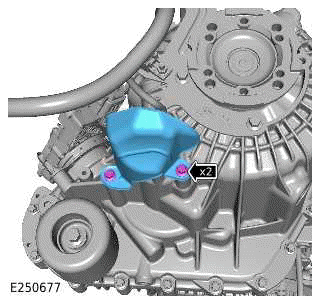

7.
.png)
- Remove the 2 bolts.
- Remove the heatshield.

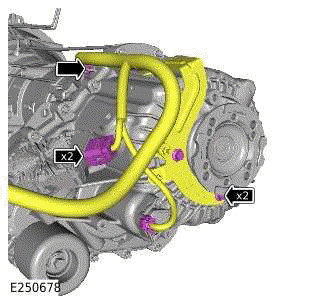

8.
.png)
- Remove the 2 bolts.
- Disconnect the 2 electrical connectors.
- Release the wiring harness clip.
- Reposition the wiring harness away from the transfer case.

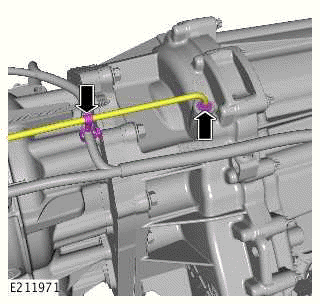

9.
.png)
- Release the clip.
- Disconnect the breather pipe.

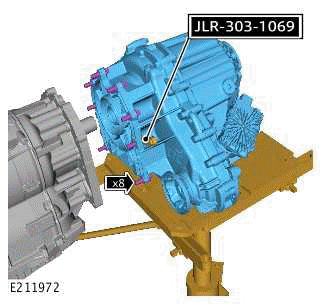

10.
WARNING:
This step requires the aid of another technician.
NOTE:
Do not disassemble further if component if removed for access only.
.png)

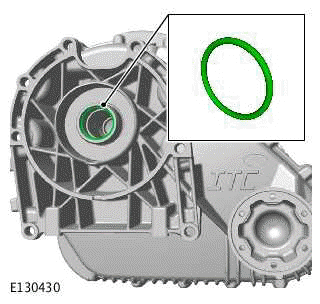

11.
NOTE:
This step is only required if the existing transfer case is to be installed.
.png)
Remove and discard the seal.

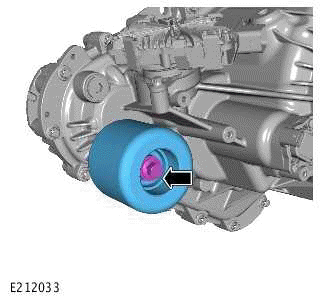

12.
.png)
- Remove the bolt.
- Remove the NVH damper.

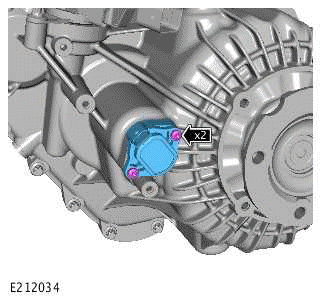

13.
.png)
- Remove the 2 bolts.
- Remove the sensor.
