Land Rover Defender: Blower
REMOVAL AND INSTALLATION
REMOVAL
NOTES:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
1. Disconnect the startup battery ground cable.
2.
.png)

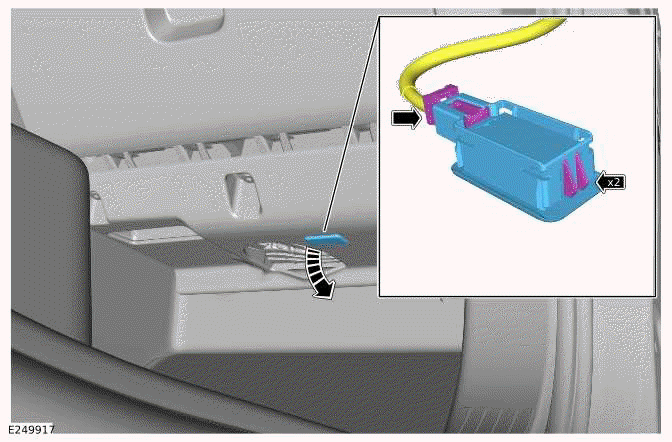

- Release the 2 clips.
- Disconnect the electrical connector from the footwell lamp.
- Remove the footwell lamp.
3.
.png)

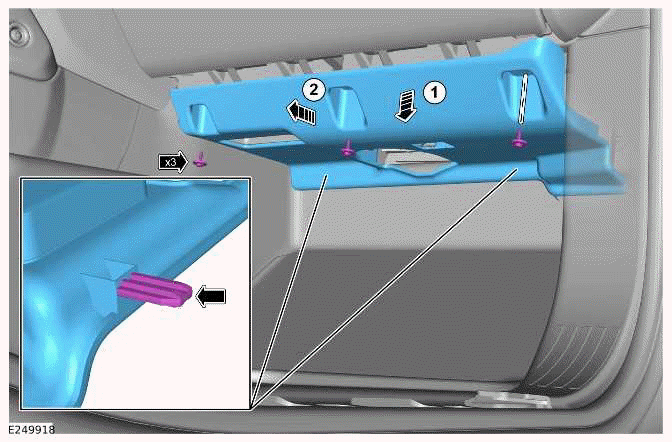

- Remove the 3 screws.
- Remove the passenger side footwell trim panel.
4.
.png)

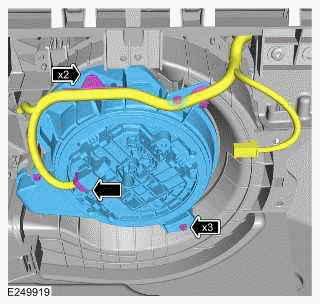

- Disconnect the electrical connector from the blower.
- Release the 2 wiring harness clips.
- Remove the 3 screws.
- Remove the blower.
INSTALLATION
1.
- Install the blower.
- Install and tighten the 3 screws.
Torque: 1.2Nm
- Install the wiring harness to the 2 clips.
- Connect the electrical connector to the blower.
2.
- Install the passenger side footwell trim panel.
- Install and tighten the 3 screws.
Torque: 5Nm
3.
- Connect the electrical connector to the footwell lamp.
- Install the footwell lamp.
4. Connect the startup battery ground cable.
