Land Rover Defender: Transfer Case Input Seal
Land Rover Defender 2020-2024 Service Manual / Powertrain / Transfer Case / Transfer Case Input Seal
REMOVAL AND INSTALLATION
SPECIAL TOOL(S)
.png)
100-012
Slide Hammer
.png)
100-012-01
Slide Hammer Adapter
.png)
308-375
Remover, Input and Output Seal
.png)
308-598
Installer, Oil Seal
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
1. Disconnect the startup battery ground cable.
2. Raise and support the vehicle on a suitable 2 post lift.
3. Remove the transfer case.
4.
CAUTION: Care must be taken to avoid damage to the seal register and running surface.
.png)
- Use the special tools to remove the seal.
Special Tool(s): 100-012, 100-012-01, 308-375
- Discard the seal.
INSTALLATION
1.
CAUTION:
- Oil seals must be installed dry.
- Make sure all the components are clean and free from corrosion.
.png)

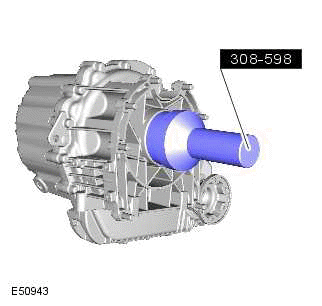

Use the special tools to install a new seal.
Special Tool(s): 308-598
2. Install the transfer case.
3. Connect the startup battery ground cable.
