Land Rover Defender: Rear Fog Lamp
Land Rover Defender 2020-2026 Service Manual / Electrical / Lighting / Exterior Lighting / Rear Fog Lamp
REMOVAL AND INSTALLATION
REMOVAL
CAUTION: Make sure to protect the paintwork.
NOTE:
- This procedure contains illustrations for right side components, left side components are similar.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.
1. Raise and support the vehicle on a suitable 2 post lift.
2. Remove the rear bumper for access.
3.
CAUTION:
- Take extra care not to damage the wiring harnesses.
- Take extra care not to damage the edges of the component.

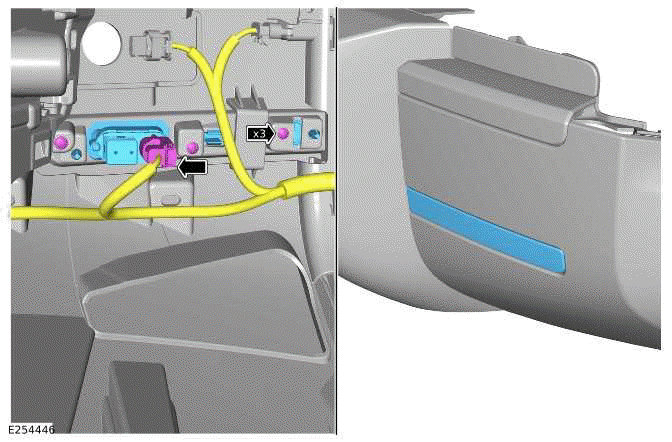

.png)
- Disconnect the electrical connector.
- Remove the 3 screws.
- Remove the rear fog lamp.
INSTALLATION
1.
CAUTION:
- Take extra care not to damage the wiring harnesses.
- Take extra care not to damage the edges of the component.
- Install the rear fog lamp.
- Install and tighten the 3 screws.
Torque: 1.5Nm
- Connect the electrical connector.
2. Install the rear bumper.
