Land Rover Defender: MHEV Battery Cooling Fan
REMOVAL AND INSTALLATION
REMOVAL
NOTE:
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
1. Disconnect the startup battery ground cable.
2. Remove the MHEV battery housing air duct.

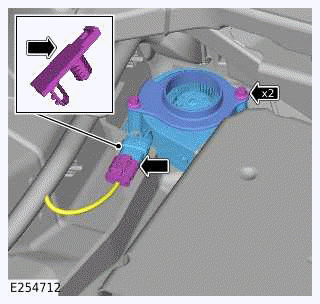

3.
.png)
- Disconnect the electrical connector.
- Release the wiring harness clip.
- Remove the 2 bolts.
- Remove the MHEV battery cooling fan.
INSTALLATION
1.
- Install the MHEV battery cooling fan.
- Install and tighten the 2 bolts.
Torque: 3.2Nm
- Install the wiring harness clip.
- Connect the electrical connector.
2. Install the MHEV battery housing air duct.
3. Connect the startup battery ground cable.
