Land Rover Defender: Front Portable Media Interface Panel
Land Rover Defender 2020-2024 Service Manual / Electrical / Information and Entertainment System / Front Portable Media Interface Panel
REMOVAL AND INSTALLATION
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.

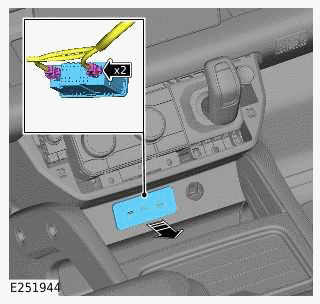

1.
.png)
- Use a suitable tool to release the front portable media interface panel.
- Disconnect the 2 electrical connectors.
- Remove the front portable media interface panel.
INSTALLATION
1.
- Connect the 2 electrical connectors to the front portable media interface panel.
- Install the front portable media interface panel.
