Land Rover Defender: Exhaust System
Land Rover Defender 2020-2026 Service Manual / Powertrain / Exhaust System
Exhaust System - Ingenium I4 2.0l Petrol/Ingenium I4 2.0l Petrol - PHEV
SPECIFICATIONS
NOTE: Numbers with a green background are a single use component.

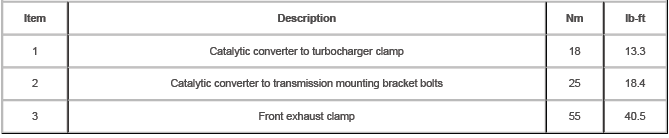

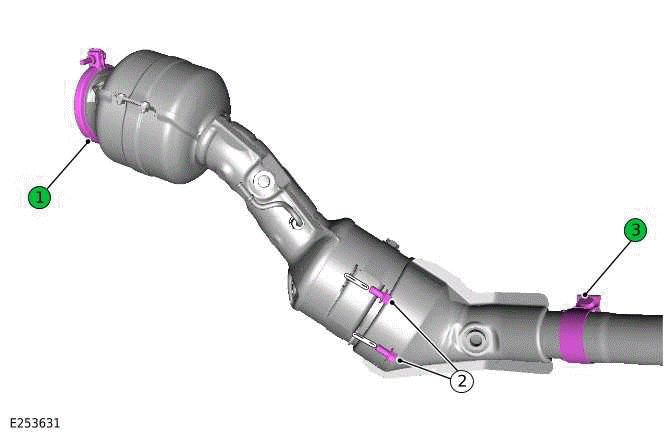

COMPONENT TORQUE LOCATION
.png)
.png)

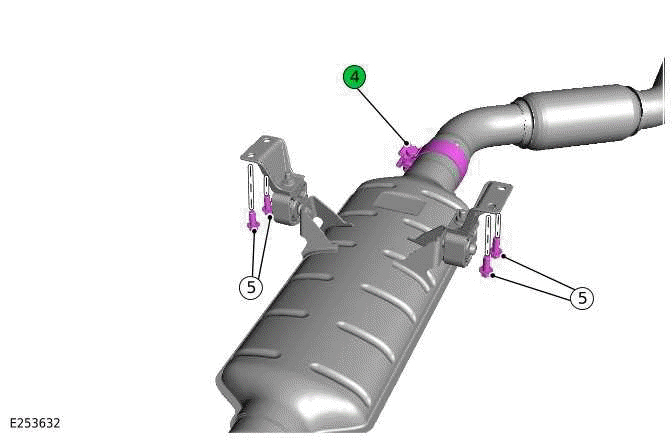

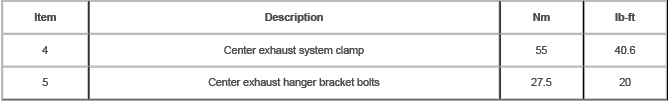

COMPONENT TORQUE LOCATION
.png)
.png)

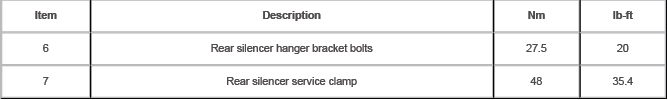

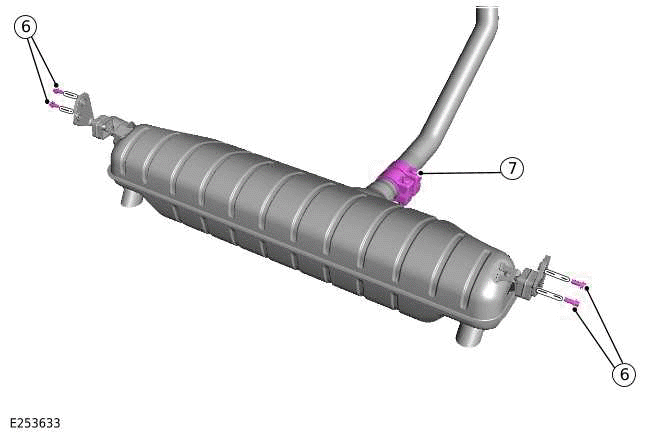

COMPONENT TORQUE LOCATION
.png)
.png)
- Exhaust System - Description and Operation
- Exhaust System - Diagnosis and Testing
- Catalytic Converter - Ingenium I4 2.0l Petrol
- Exhaust System - Removal and Installation
- Front Silencer
- Rear Silencer
- Intermediate Pipe
