Land Rover Defender: Exhaust System - Removal and Installation

Land Rover Defender 2020-2026 Service Manual / Powertrain / Exhaust System / Exhaust System - Removal and Installation

REMOVAL AND INSTALLATION

PART(S)

Exhaust System - Removal and Installation

REMOVAL

WARNING: Observe due care when working near a hot exhaust system.

CAUTION: Make sure the exhaust system is supported at all times.

NOTE:

1. Raise and support the vehicle on a suitable 2 post lift.

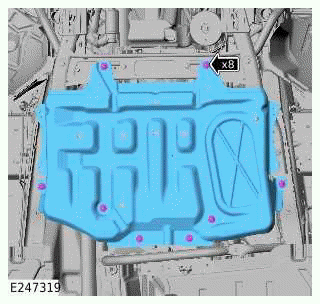

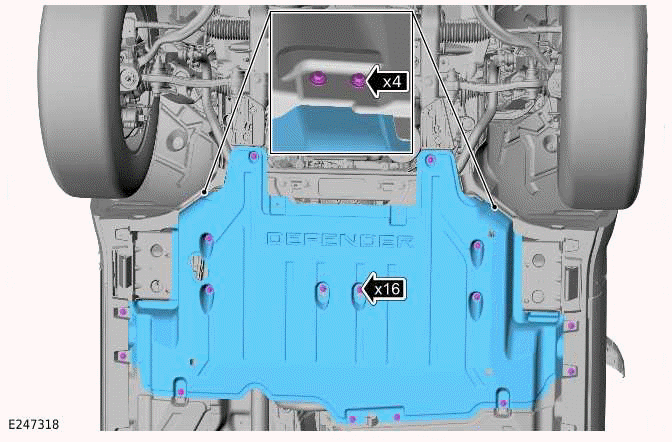

2. Remove the engine undershield.

3.

Exhaust System - Removal and Installation

4.

Exhaust System - Removal and Installation

5.

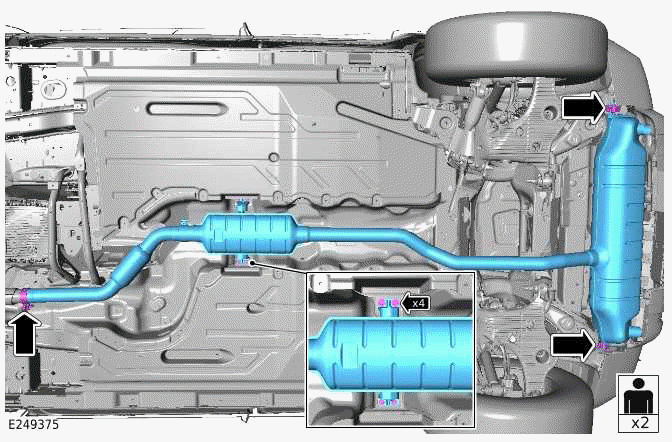

WARNING: This step requires the aid of another technician.

Exhaust System - Removal and Installation

6.

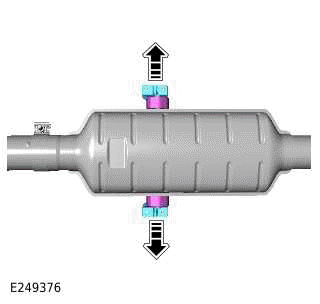

NOTE: Do not disassemble further if the component is removed for access only.

Exhaust System - Removal and Installation

Remove the 2 exhaust hanger mounting brackets.

INSTALLATION

1.

NOTE: This step is only required if previously removed.

Install the 2 exhaust hanger mounting brackets.

2.

WARNING: This step requires the aid of another technician.

3.

4.

5. Install the engine undershield.
