Land Rover Defender: Body Control Module/Gateway Module Assembly
REMOVAL AND INSTALLATION
GENERAL EQUIPMENT
.png)
REMOVAL
NOTES:
- If a new Body Control Module/Gateway Module (BCM/GWM) is installed, a
new Remote Function Actuator
(RFA) must also be installed. This step is only required for vehicles that
are 15MY or later. This step is not
required for North American Specification (NAS) vehicles. Use the approved
Jaguar Land Rover (JLR)
diagnostic equipment to configure the new RFA.
- Make sure all of the keys are present before this procedure is
completed.
- A maximum of 8 remote transmitters and activity keys can be programed
to the BCM/GWM. Programming
for all remote transmitters and activity keys must be completed at the same
time.
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
1. If a new Body Control Module/Gateway Module (BCM/GWM) is installed, use
the approved Jaguar Land
Rover diagnostic equipment to download the stored data.
General Equipment: Jaguar Land Rover approved diagnostic equipment
2. Disconnect the startup battery ground cable.
3. Remove the Passenger Junction Box (PJB).
4.
.png)

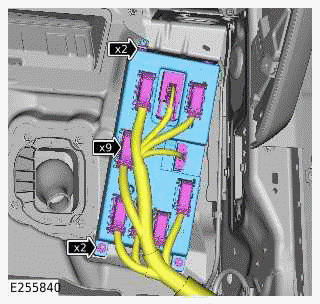

- Disconnect the 9 electrical connectors.
- Remove the 2 nuts.
- Release the BCM/GWM from the 2 grommets.
- Remove the BCM/GWM.
INSTALLATION
1.
- Install the Body Control Module/Gateway Module (BCM/GWM) to the 2
grommets.
- Install and tighten the 2 nuts.
Torque: 10Nm
- Connect the 9 electrical connectors.
2. Install the Passenger Junction Box (PJB).
3. Connect the startup battery ground cable.
4. If a new BCM/GWM is installed, use the approved Jaguar Land Rover
diagnostic equipment to configure
the new BCM/GWM and upload the stored data.
General Equipment: Jaguar Land Rover approved diagnostic equipment
