Land Rover Defender: Engine Junction Box A
Land Rover Defender 2020-2025 Service Manual / Electrical / Electrical Distribution / Module Communications Network / Engine Junction Box A
REMOVAL AND INSTALLATION
GENERAL EQUIPMENT
.png)
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains illustrations for right hand drive vehicles, left hand drive vehicles are similar.
1. If a new Engine Junction Box (EJB) is to be installed, download the stored data using Jaguar Land Rover (JLR) approved diagnostic equipment.
General Equipment: Jaguar Land Rover approved diagnostic equipment
2. Disconnect the startup battery ground cable.
3. Remove the cowl panel.
4.
.png)

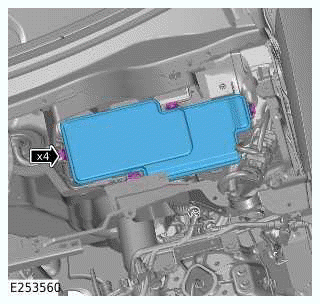

- Release the 4 clips.
- Remove the EJB access cover.
5.
.png)

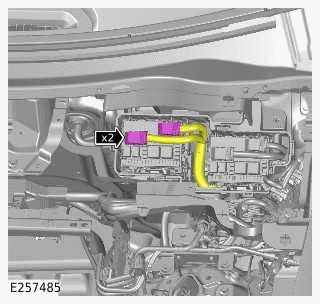

- Disconnect the 2 electrical connectors.
- Reposition the wiring harness away from the EJB A.
6.
.png)

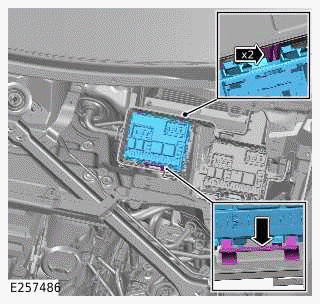

- Release the 3 clips.
- Remove the EJB A.
INSTALLATION
1.
- Install the EJB A.
- Install the 3 EJB A clips.
2.
- Reposition the wiring harness into the correct location.
- Connect the 2 electrical connectors to EJB A.
3.
- Install the EJB access cover.
- Install the 4 clips.
4. Install the cowl panel.
5. Connect the startup battery ground cable.
6. If a new EJB is installed, upload the stored data using JLR approved diagnostic equipment.
General Equipment: Jaguar Land Rover approved diagnostic equipment
