Land Rover Defender: Glovebox Lock
REMOVAL AND INSTALLATION
REMOVAL
NOTE:
- This procedure contains illustrations for left hand drive vehicles, right hand drive vehicles are similar.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
1. With the glovebox closed: insert the key and lock the glovebox.
2.
CAUTION: The key must be kept in the glovebox lock.
.png)

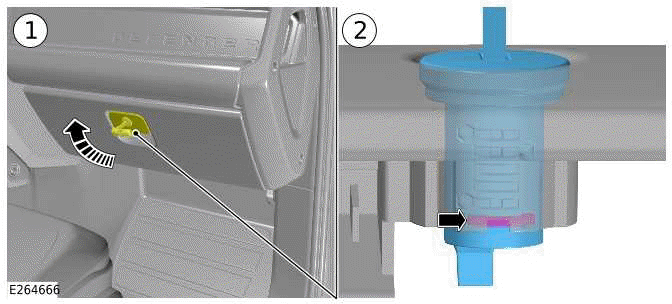

- Reposition the glovebox handle to get access to the glovebox lock clip.
- Release the lock clip and remove the glovebox lock.
INSTALLATION
1.
CAUTION: The key must be kept in the glovebox lock until the lock is fully inserted.
NOTE: If a new component has been installed, Insert the key into the new lock.
- Press the clip and install the glovebox lock.
2. Unlock the glovebox and remove the key.
