Land Rover Defender: Selector Shaft Seal
Land Rover Defender 2020-2025 Service Manual / Powertrain / Automatic Transmission / Selector Shaft Seal
REMOVAL AND INSTALLATION
SPECIAL TOOL(S)
.png)
307-509-1
Extractor, Seal
.png)
307-509-2
Extractor, Seal
.png)
307-509-3
Installer, Seal
REMOVAL
CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
NOTE:
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
1. Raise and support the vehicle on a suitable 2 post lift.
2. Remove the front driveshaft.
3.
.png)

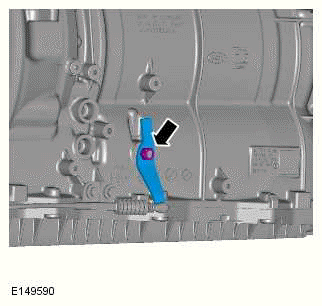

- Remove the nut(S).
- Remove the Emergency Park Release (EPR) lever.
4.
.png)

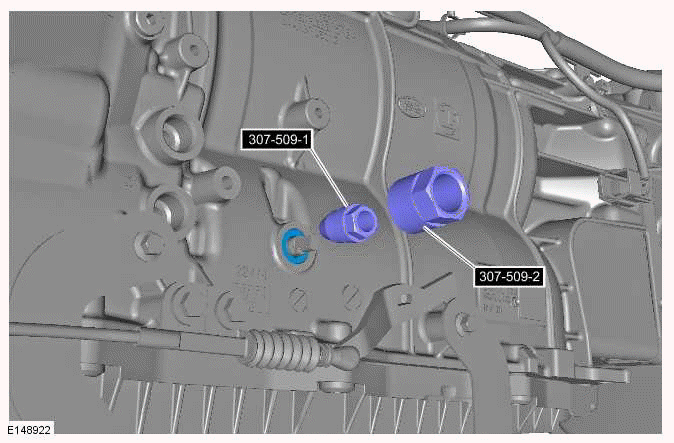

- Use the special tools to remove the seal.
Special Tool(s): 307-509-1, 307-509-2
- Discard the seal.
INSTALLATION
1.
.png)

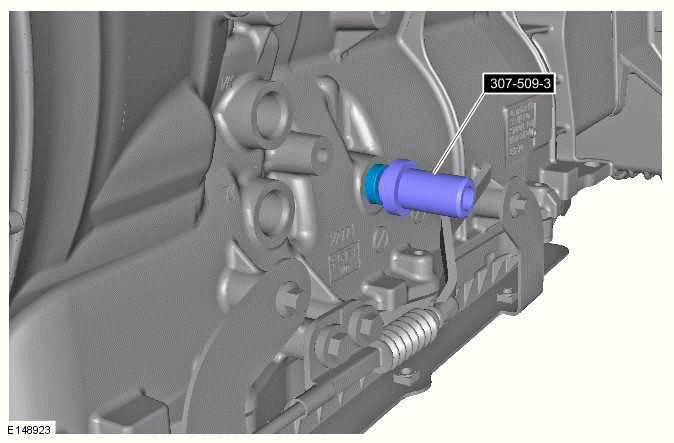

Use the special tool to install a new seal.
Special Tool(s): 307-509-3
2.
- Install the Emergency Park Release (EPR) lever.
- Install and tighten the nut(S).
Torque: 12Nm
3. Install the front driveshaft.
