Land Rover Defender: Air Suspension Control Module
REMOVAL AND INSTALLATION
GENERAL EQUIPMENT
.png)
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
The following step(s) applies to: All vehicles
1. Disconnect the startup battery ground cable.
The following step(s) applies to: Vehicles without third row seats
2. Remove the right loadspace trim panel.
The following step(s) applies to: Vehicles with third row seats
3. Remove the right loadspace trim panel.
The following step(s) applies to: All vehicles
4.
.png)

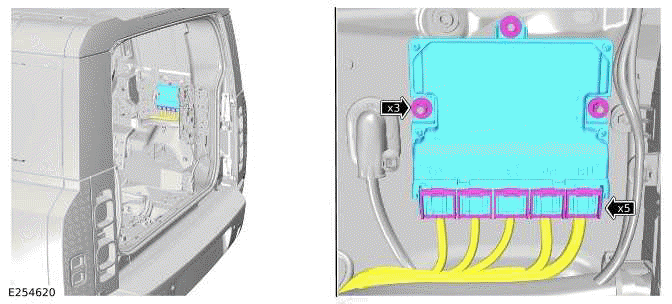

- Disconnect the 5 electrical connectors from the air suspension control module.
- Remove the 3 nuts.
- Remove the air suspension control module.
INSTALLATION
The following step(s) applies to: All vehicles
1.
- Install the air suspension control module.
- Install and tighten the 3 nuts.
Torque: 10Nm
- Connect the 5 electrical connector to the air suspension control module.
The following step(s) applies to: Vehicles with third row seats
2. Install the right loadspace trim panel.
The following step(s) applies to: Vehicles without third row seats
3. Install the right loadspace trim panel.
The following step(s) applies to: All vehicles
4. Connect the startup battery ground cable.
5. Use the Jaguar Land Rover (JLR) approved diagnostic equipment to configure the new component.
General Equipment: Jaguar Land Rover approved diagnostic equipment
