Land Rover Defender: Transfer Case Draining and Filling

GENERAL PROCEDURES

PART(S)

Transfer Case Draining and Filling

DRAINING

CAUTION: Be prepared to collect escaping fluids.

NOTE:

1. Raise and support the vehicle on a suitable 2 post lift.

2. Remove the left undershield.

3. Position a container to collect the fluid.

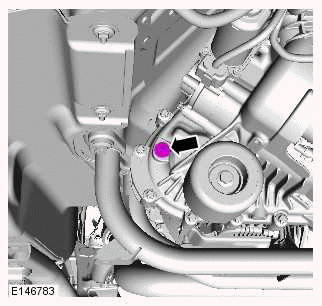

4.

CAUTION: Make sure that the area around the component is clean and free of foreign material.

Transfer Case Draining and Filling

5. Allow the fluid to drain.

FILLING

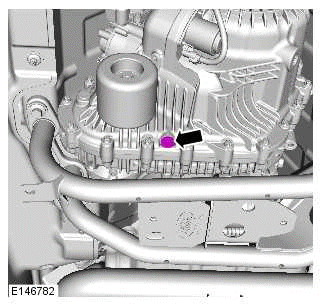

1.

Transfer Case Draining and Filling

2.

CAUTION: Make sure that the area around the component is clean and free of foreign material.

Transfer Case Draining and Filling

3. Fill the transfer case with the correct specification of fluid, until the fluid is level with the bottom of the filler plug hole.

4.

Transfer Case Draining and Filling

5. Clean the area around the filler plug, wipe away any excess fluid and remove the container.

6. Install the left undershield.
