Land Rover Defender: Steering Gear

REMOVAL AND INSTALLATION

SPECIAL TOOL(S)

Steering Gear

JLR-211-342

Steering Gear Clamp

Steering Gear

JLR-211-344

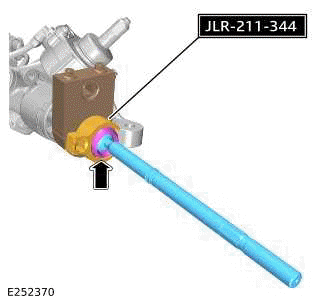

Tie Rod Removal and Installation Tool

PART(S)

Steering Gear

REMOVAL

NOTE:

1. Disconnect the startup battery ground cable.

2. Raise and support the vehicle on a suitable 2-post lift.

3.

NOTE: Repeat this step for the other side.

Remove the front wheel and tire assembly.

4. Remove the engine undershield.

5.

CAUTION: Align the steering to the straight ahead position. Do not allow the steering wheel to rotate when the steering column is disconnected.

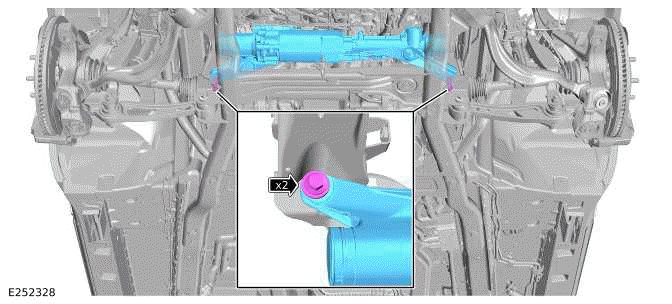

Steering Gear

6.

NOTE: Repeat this step for the other side.

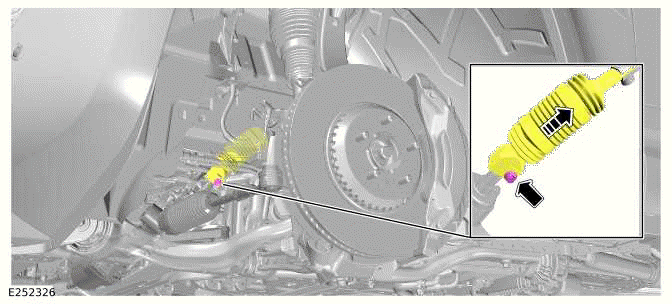

Remove the steering gear boot.

7.

NOTE: Repeat this step for the other side.

Steering Gear

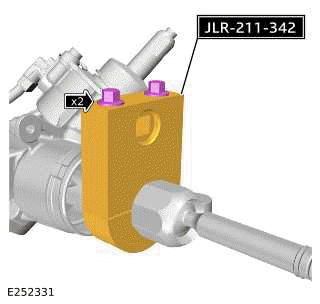

Install the special tool and use a suitable wrench to counter hold the steering gear when remove the tie-rod.

Special Tool(s): JLR-211-342

Torque

8.

CAUTIONS:

NOTE: Repeat this step for the other side.

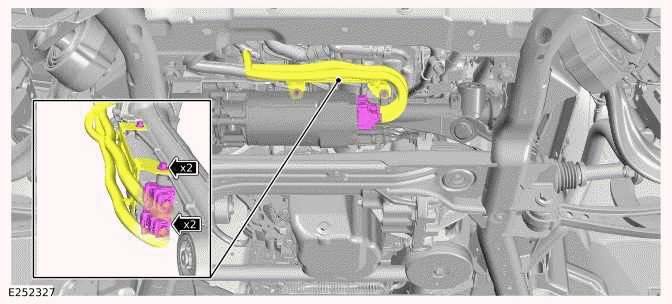

Steering Gear

9.

Steering Gear

10.

Steering Gear

INSTALLATION

1.

2.

3.

NOTE: Repeat this step for the other side.

Install the special tool and use a suitable wrench to counter hold the steering gear when install the tie-rod.

Special Tool(s): JLR-211-342

Torque

4.

CAUTION: Make sure to counterhold the component while tightening.

NOTE: Repeat this step for the other side.

5.

NOTE: Repeat this step for the other side.

Install the steering gear boot.

6.

7.

NOTE: Repeat this step for the other side.

Install the front wheel and tire assembly.

8. Install the engine undershield.

9. Connect the startup battery ground cable.

10. Use the Jaguar Land Rover (JLR) approved wheel alignment equipment, check and if necessary adjust the front wheel alignment.
