Land Rover Defender: Steering Gear Boot
REMOVAL AND INSTALLATION
PART(S)
.png)
REMOVAL
CAUTION:
Inspect the steering gear boot, replace if damaged.
NOTES:
- This procedure contains illustrations for left side components, right
side components are similar.
- This procedure contains some variation in the illustration depending
on the vehicle specification, but
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
1. Raise and support the vehicle on a suitable 2-post lift.
2. Remove the front left wheel and tire assembly.
3. Remove the tie-rod end.
4.
CAUTIONS:
- Make sure that the area around the component is clean and free of
foreign material.
- Note the positions of the components on removal.
- Care must be taken when remove the components not to damage the
inner tie-rod. Failure to
follow this instruction may result in corrosion of the inner tie-rod.

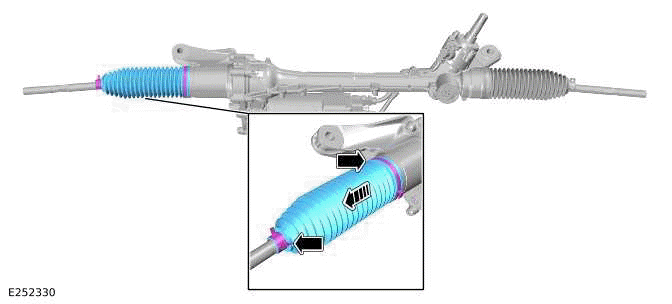

.png)
- Remove the 2 clamps.
- Remove the steering gear boot.
INSTALLATION
1.
CAUTIONS:
- Make sure that the area around the component is clean and free of
foreign material.
- Make sure that the components are installed to the noted removal
position.
- Care must be taken when install the components not to damage the
inner tie-rod. Failure to
follow this instruction may result in corrosion of the inner tie-rod.
2. Install the tie-rod end.
3. Install the front left wheel and tire.
