Land Rover Defender: Spill Resistant Water Bowl

Land Rover Defender 2020-2025 Service Manual / General Information / Accessory Information / Spill Resistant Water Bowl

SPILL RESISTANT WATER BOWL - PART NUMBER: VPLCS0518

REMOVAL AND INSTALLATION

WARNING: Accessories which are not properly installed can be dangerous. Read the instructions carefully prior to installation. Comply with instructions at all times. If in doubt, contact your nearest approved retailer.

NOTES:

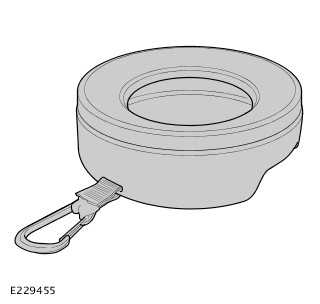

Spill Resistant Water Bowl

Spill Resistant Water Bowl

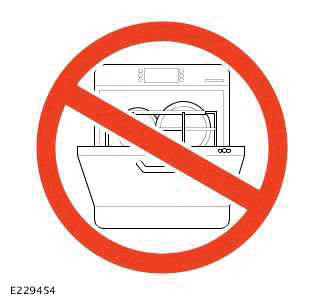

CAUTION: Do not clean the spill resistant water bowl in a dishwasher.

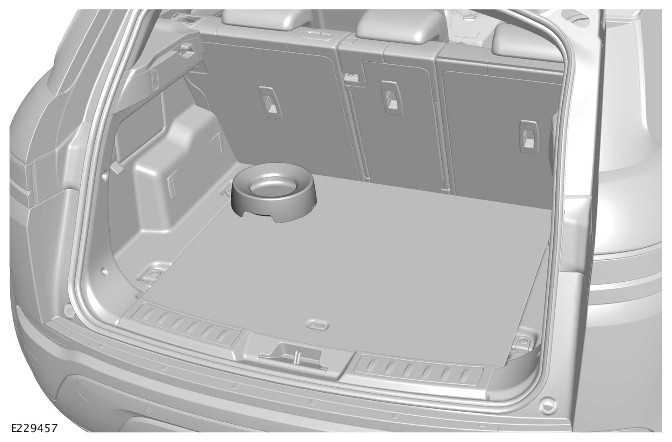

Spill Resistant Water Bowl

INSTALLATION

1.

Spill Resistant Water Bowl

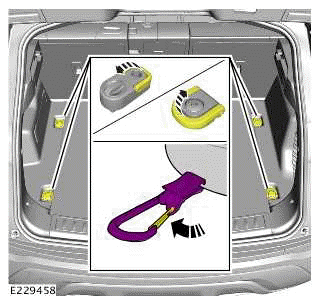

To install the spill resistant water bowl in the vehicle, attach with the saftey strap to a vehicle loadspace D-loop anchorpoint.

2.

Spill Resistant Water Bowl

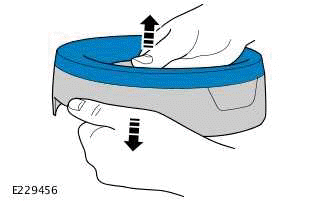

To remove the lid firmly pull upwards as shown.

3.

Spill Resistant Water Bowl

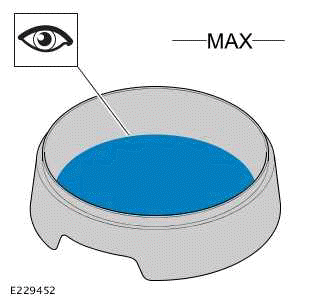

Maximum water capacity 350 ml.

4.

Spill Resistant Water Bowl

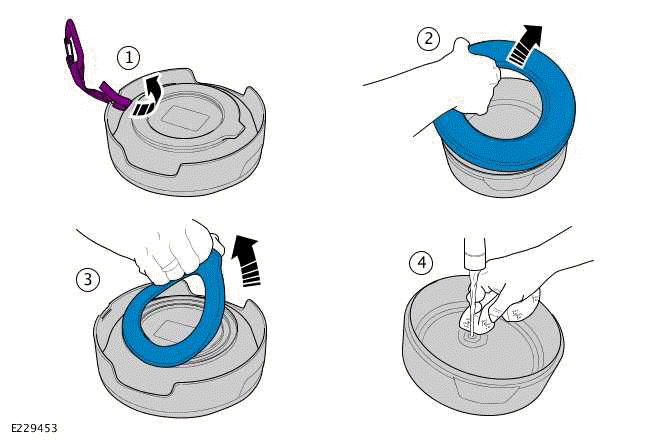

To clean:

  1. Remove the saftey strap
  2. Remove the lid.
  3. Remove the base.
  4. Clean all parts with warm soapy water.
