Land Rover Defender: Fixed Side Steps and Side Tubes
Land Rover Defender 2020-2025 Service Manual / General Information / Accessory Information / Fixed Side Steps and Side Tubes
FIXED SIDE STEPS AND SIDE TUBES - PART NUMBER: 90: VPLEP0433, VPLEP0391, 110: VPLEP0434, VPLEP0392
REMOVAL AND INSTALLATION
WARNING: Accessories which are not correctly installed can be dangerous. Read the instructions carefully prior to installation. Comply with instructions at all times. If in doubt, contact your nearest approved retailer.
NOTES:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains illustrations for left side components, right
side components are similar.

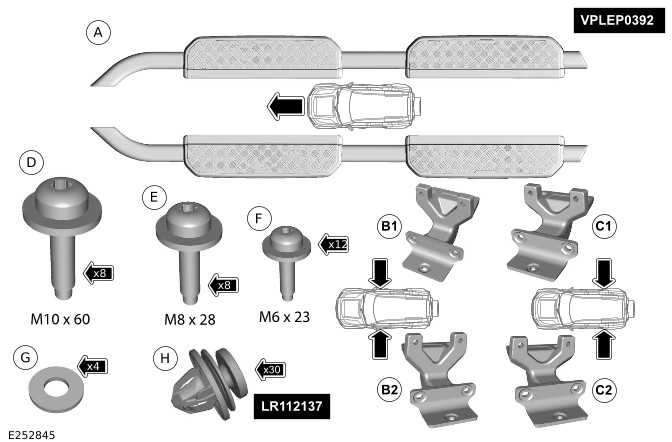

Fixed side steps for vehicles with 110 wheelbase, use VPLEP0392.
.png)

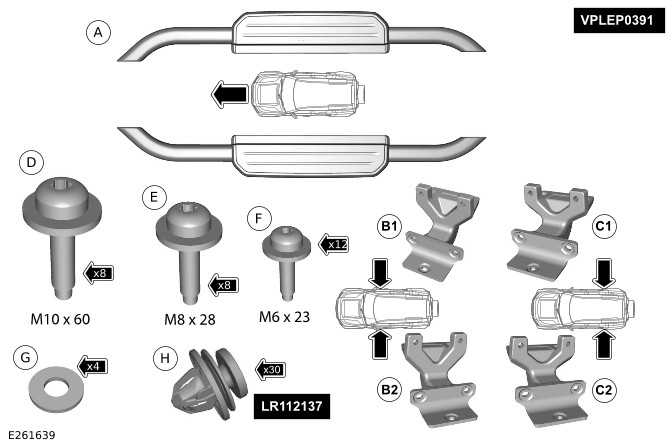

NOTE: Fixed side steps for vehicles with 90 wheelbase, use VPLEP0391.
.png)

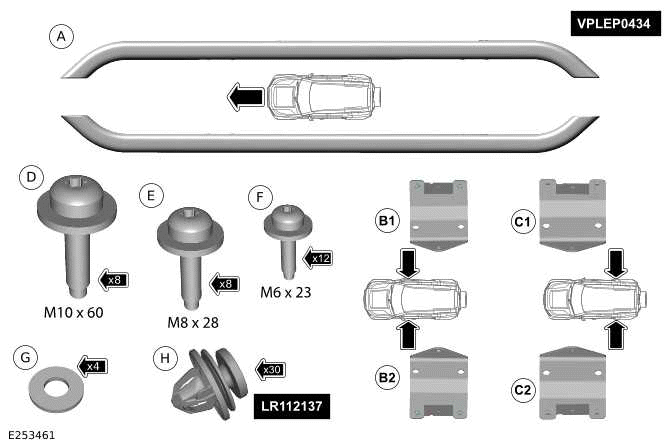

NOTE: side tubes for vehicles with 110 wheelbase, use VPLEP0434.
.png)

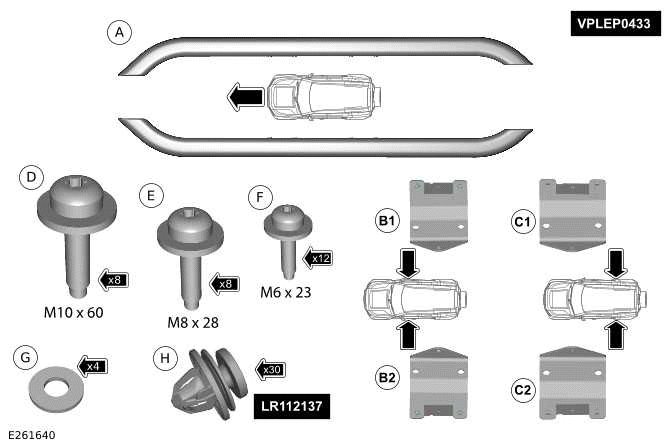

NOTE: side tubes for vehicles with 90 wheelbase, use VPLEP0433.
.png)
