Land Rover Defender: Steering Linkage

Land Rover Defender 2020-2026 Service Manual / Chassis / Steering System / Steering Linkage

SPECIFICATIONS

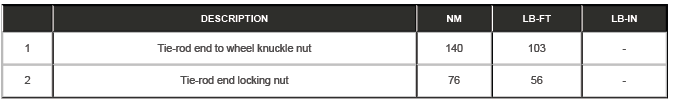

COMPONENT TORQUE LOCATION

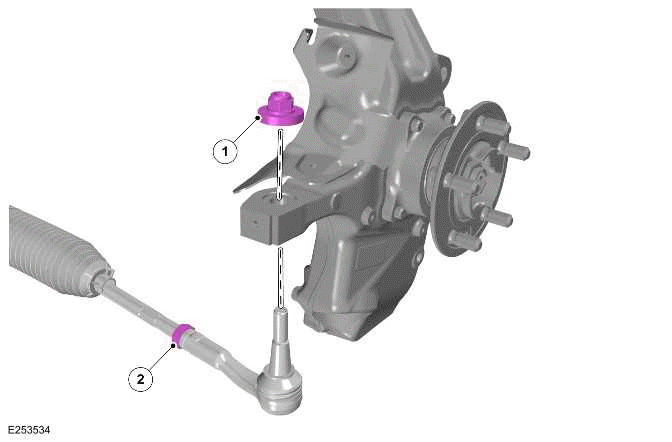

Steering Linkage

Steering Linkage

COMPONENT TORQUE LOCATION

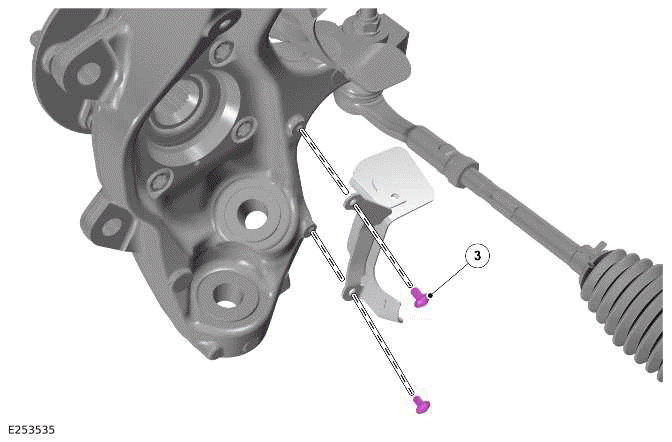

Steering Linkage

Steering Linkage

DIAGNOSIS AND TESTING

For additional diagnosis and testing information, refer to the relevant Diagnosis and Testing section in the workshop manual.

CAUTION: Diagnosis by substitution from a donor vehicle is NOT acceptable. Substitution of control modules does not guarantee confirmation of a fault, and may also cause additional faults in the vehicle being tested and/or the donor vehicle
