Land Rover Defender: Protective Seat Cover - Second Row
PROTECTIVE SEAT COVER - SECOND ROW - 110, PART NUMBER: VPLVS0312
REMOVAL AND INSTALLATION
WARNING: Accessories which are not correctly installed can be dangerous. Read the instructions carefully prior to installation. Comply with instructions at all times. If in doubt, contact your nearest approved retailer.

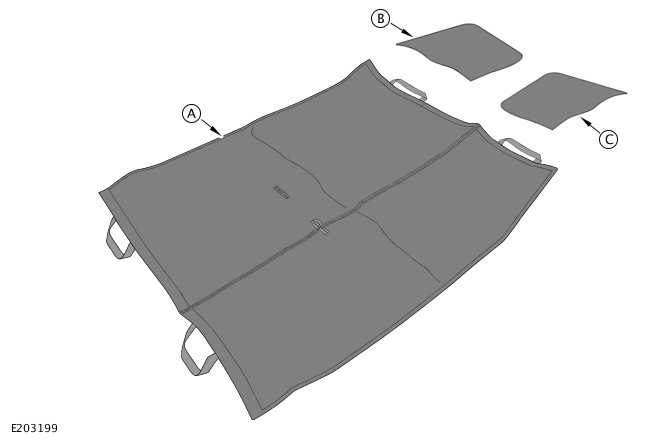

.png)
INSTALLATION
1. Move the head restraints.
Raise the front head restraints if applicable.
Raise the second row head restraints.
2. Open the rear left door.
3.
.png)

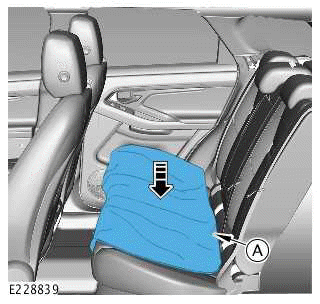

Place the second row seat - protective cover onto the second row seat cushion.
4.
.png)

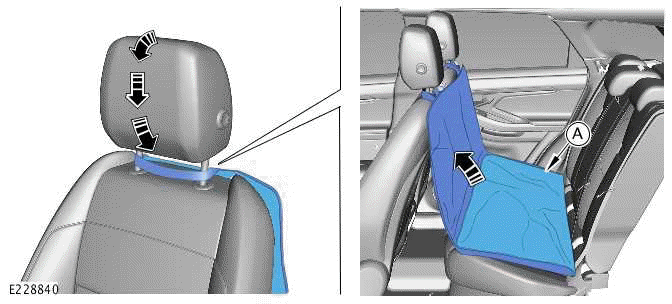

Open the second row seat - protective cover as illustrated. Pass the head restraint straps over the top of the 2 front head restraints as illustrated.
5.
.png)

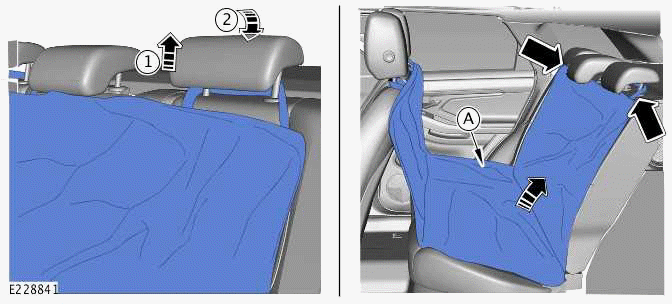

Open the second row seat - protective cover against the second row seat backrest as illustrated. Pass the head restraint straps over the top of the 2 second row head restraints as illustrated.
6.
.png)

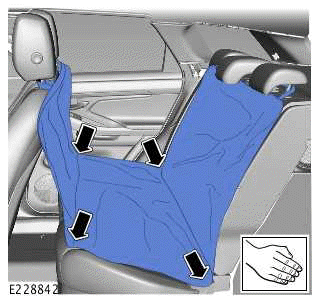

Flatten down the second row seat - protective cover.
7.

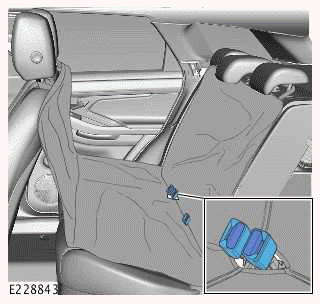

WARNING: Make sure the second row seatbelt buckles go through the holes in the second row seat - protective cover as illustrated.
.png)
8.
.png)

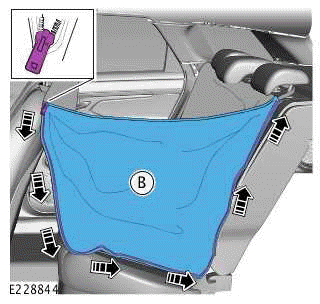

Attach the side section (B) to the second row seat - protective cover.
9. Open the rear right door.
10.
.png)

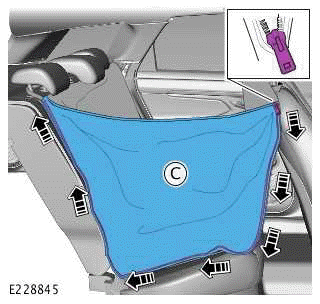

Attach the side section (C) to the second row seat - protective cover.
11.
.png)

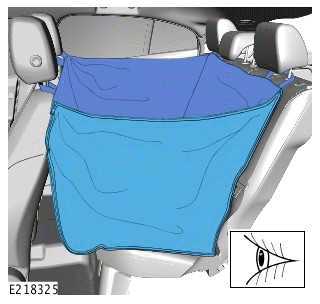

Check the position of the second row seat - protective cover.
12. Move the front head restraints to the required position if applicable.
