Land Rover Defender: Roof Pod
REMOVAL AND INSTALLATION
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
1. Remove the headliner.
2.
.png)

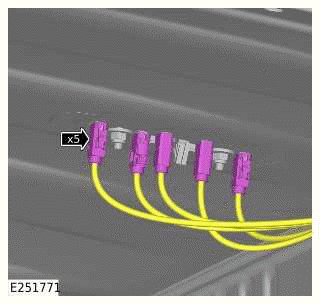

Disconnect the 5 electrical connectors.
3.
.png)

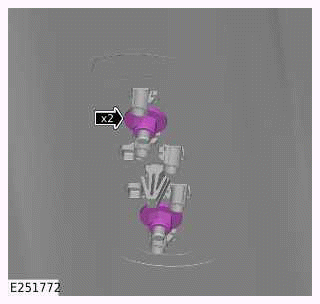

Remove the 2 nuts.
4.
.png)

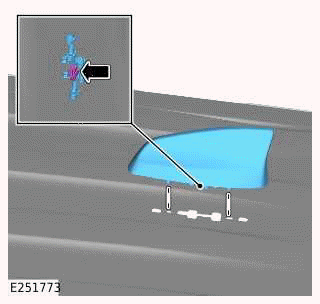

- Carefully release the clip.
- Remove the roof pod.
INSTALLATION
1.
- Install the roof pod.
- Secure the clip.
2. Install and tighten the 2 nuts.
Torque: 10Nm
3. Connect the 5 electrical connectors.
4. Install the headliner.
