Land Rover Defender 2020-2026 Service Manual / Electrical / Information and Entertainment System / AM/FM Antenna Amplifier

REMOVAL AND INSTALLATION

REMOVAL

NOTE:

1. Remove the headliner.

2.

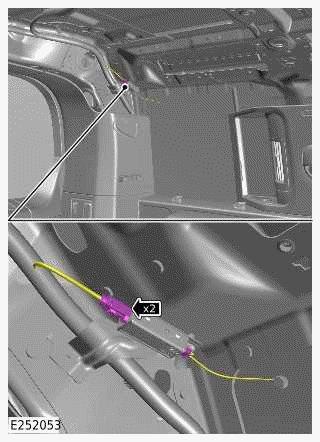

AM/FM Antenna Amplifier

Disconnect the 2 electrical connectors.

3.

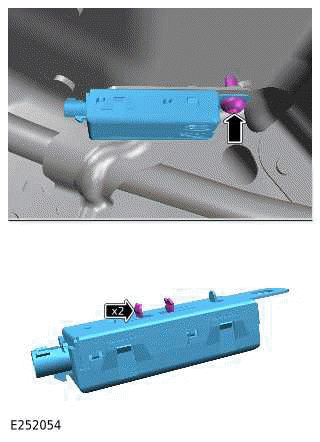

AM/FM Antenna Amplifier

INSTALLATION

1.

2. Connect the 2 electrical connectors to the AM/FM antenna amplifier.

3. Install the headliner.
