Land Rover Defender: Telematics 4G Antenna
Land Rover Defender 2020-2026 Service Manual / Electrical / Information and Entertainment System / Telematics 4G Antenna
REMOVAL AND INSTALLATION
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- The telematics 4G antenna is an integral component of the roof pod and cannot be serviced separately.
1. Remove the headliner.
2.
.png)

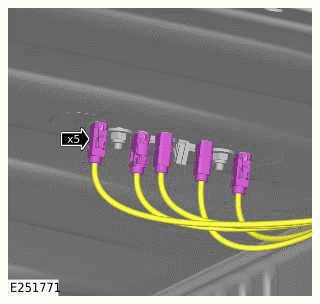

Disconnect the 5 electrical connectors.
3.
.png)

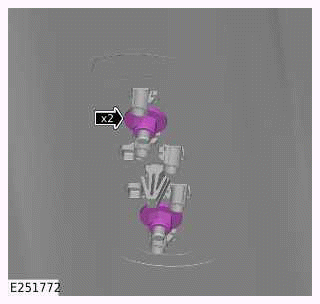

Remove the 2 nuts.
4.
.png)

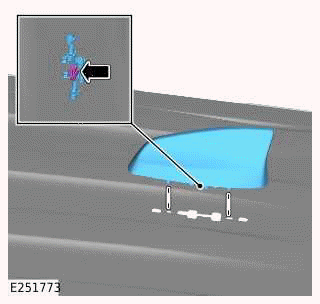

- Carefully release the clip.
- Remove the telematics 4G antenna.
INSTALLATION
1. Install the telematics 4G antenna.
2. Install and tighten the 2 nuts.
3. Connect the 5 electrical connectors to the roof pod.
4. Install the headliner.
